Tite-Space Angle Nozzles

SKU: P-BNTSN

Tite-Space nozzles are angle nozzles, designed for use in areas that are especially difficult to access, and feature:

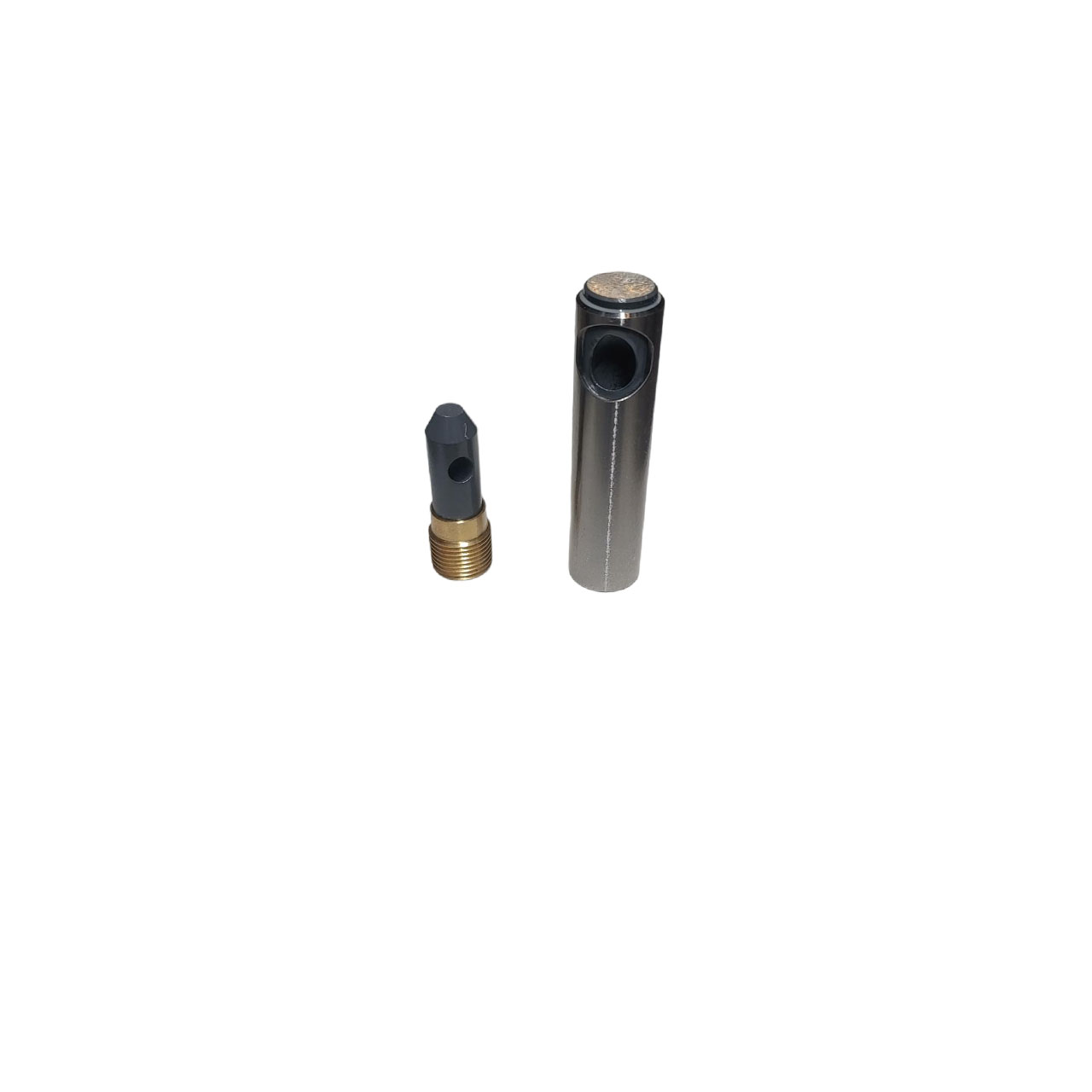

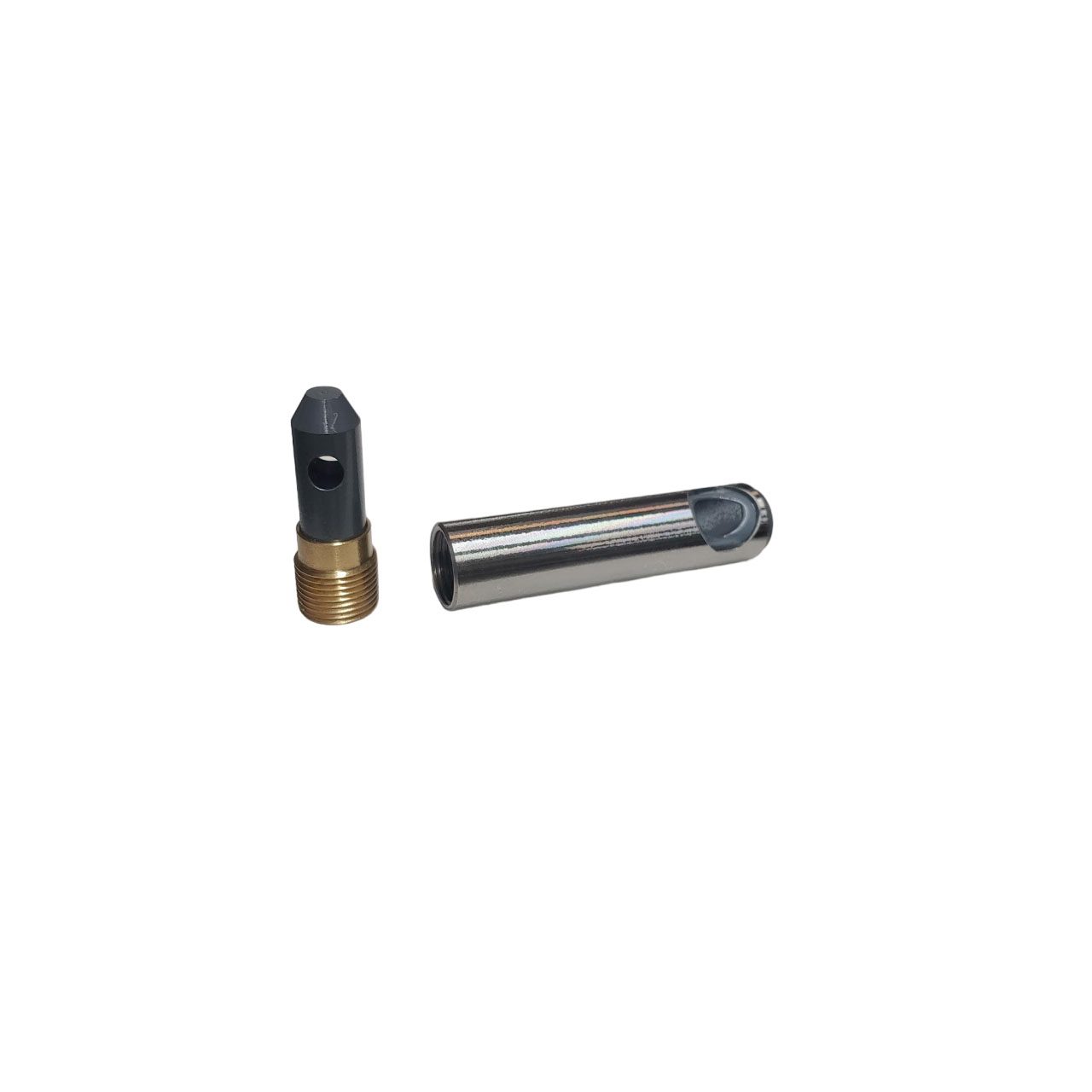

3/8″ NPT Thread in either Male or Female configuration

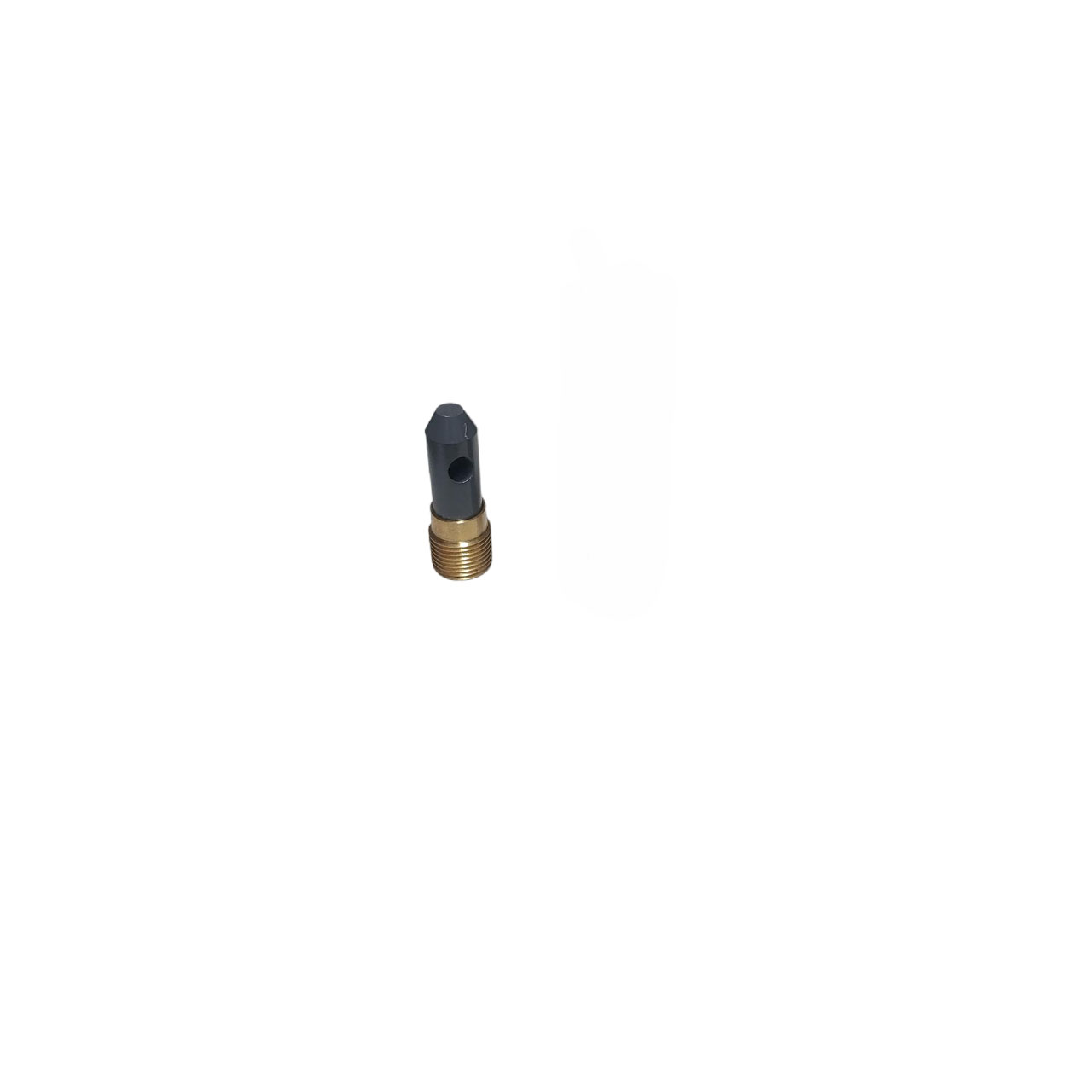

Male version has brass threads and requires a minimum opening clearance of 1″. This version is 1-7/8″ long.

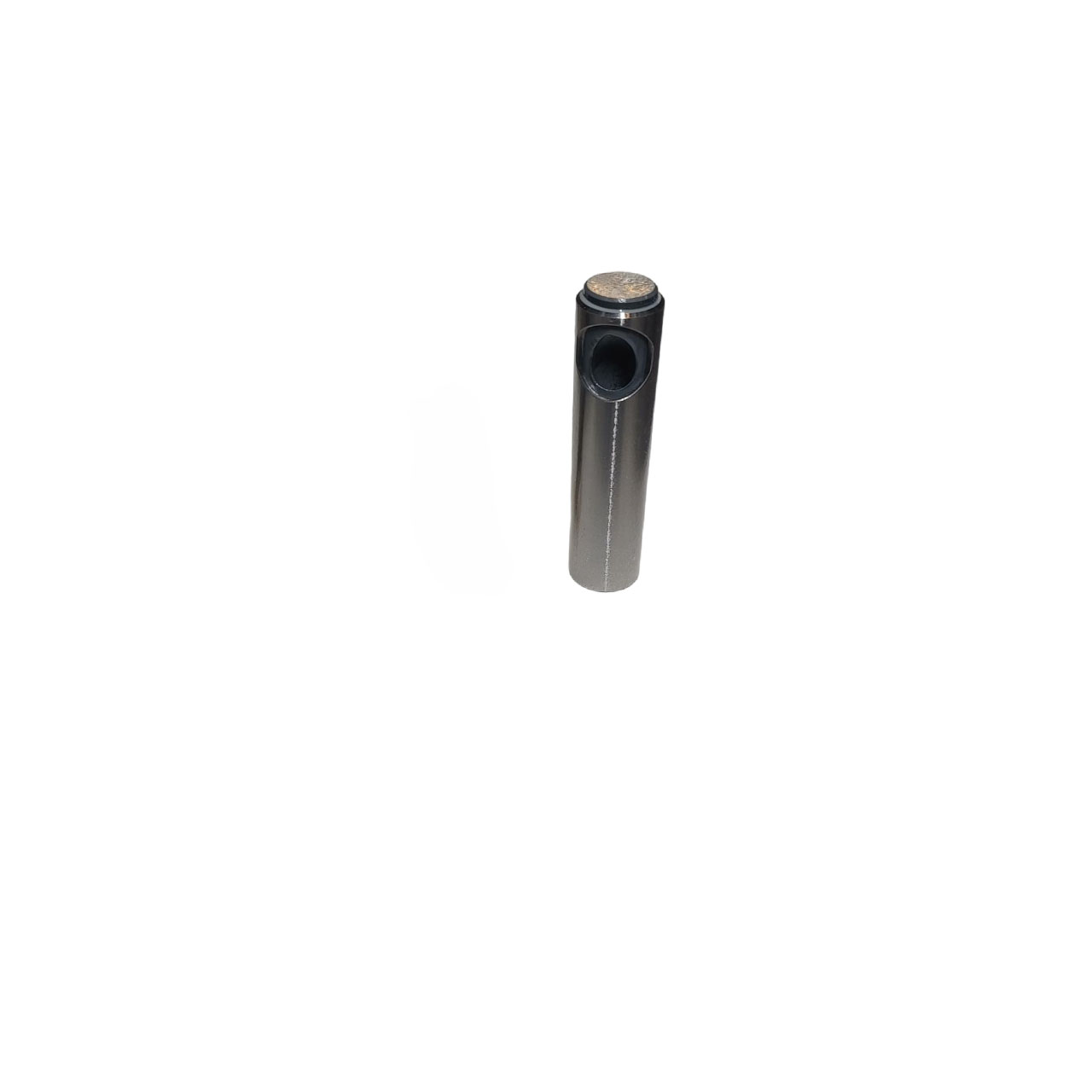

Female version has steel threads and requires a minimum opening clearance of only ¾”. This version is 3-1/8″ long.
These nozzles are often used in conjunction with our Tite Space Invader Blasting Kit, available here
Angle options include:
- 45° & 60° forward blast

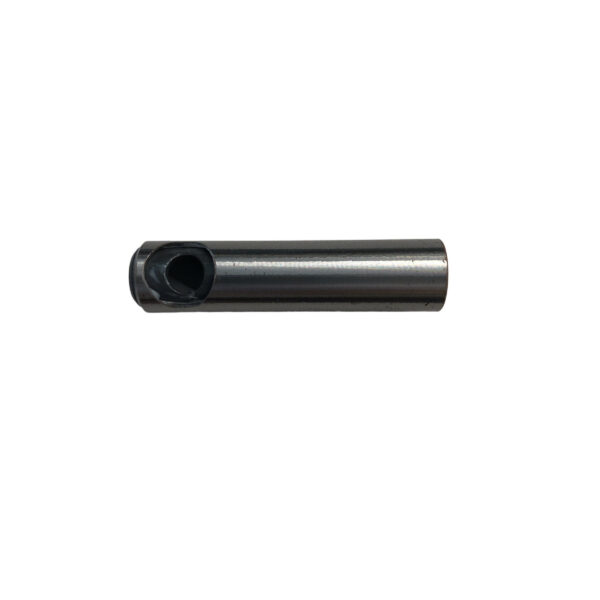

- 90° right angle blast
- 135° reverse blast
Some options available in double, triple or quad orifices in addition to single.
- Note: Using nozzles with multiple orifices will multiply the compressed air CFM requirement accordingly.
Stock version uses tungsten carbide lining.

Note: Due to the angled blast stream, these nozzles will wear more quickly than traditional versions. For larger projects, we offer long-life Roctec nozzle linings by special order, with a minimum order quantity of 5. Contact us for further details.

Categories: All Products, Blasting, Heavy Duty Sand & Abrasive Blast Nozzles Tags: blast, carbide, nozzle, p-bntsn, space, tight space, tite, tungsten

Tite-Space Angle Nozzles

SKU: P-BNTSN

Web price i

$283.80 - $456.12
$258.00 - $414.65 (excludes GST)

Ship to

Nozzle Size
Description
Product Type
Thread Type
Composition
Quantity

$258.00 – $414.65

Product Options
Product Description

							Purchase Price
BNT1442	#6 - 3/8"	90° Right Angle Nozzle	Single Orifice	3/8" Female, Steel Thread	Tungsten Carbide	-	$456.12 $414.65 (excludes GST)
BNT19022	#2 - 1/8"	90° Right Angle Nozzle	Double Orifice	3/8" Male, Brass Thread	Tungsten Carbide	-	$283.80 $258.00 (excludes GST)
BNT1446	#6 - 3/8"	45° Forward Angle Nozzle	Single Orifice	3/8" Female, Steel Thread	Tungsten Carbide	-	$456.12 $414.65 (excludes GST)
BNT19023	#2 - 1/8"	90° Right Angle Nozzle	Triple Orifice	3/8" Male, Brass Thread	Tungsten Carbide	-	$283.80 $258.00 (excludes GST)
BNT14462	#6 - 3/8"	45° Forward Angle Nozzle	Double Orifice	3/8" Female, Steel Thread	Tungsten Carbide	-	$350.92 $319.02 (excludes GST)
BNT19024	#2 - 1/8"	90° Right Angle Nozzle	Quad Orifice	3/8" Male, Brass Thread	Tungsten Carbide	-	$283.80 $258.00 (excludes GST)
BNT1446R	#6 - 3/8"	135° Reverse Angle Nozzle	Single Orifice	3/8" Female, Steel Thread	Tungsten Carbide	-	$456.12 $414.65 (excludes GST)
BNT1903	#3 - 3/16"	90° Right Angle Nozzle	Single Orifice	3/8" Male, Brass Thread	Tungsten Carbide	-	$283.80 $258.00 (excludes GST)
BNT1452	#2 - 1/8"	60° Forward Angle Nozzle	Single Orifice	3/8" Male, Brass Thread	Tungsten Carbide	-	$283.80 $258.00 (excludes GST)
BNT1904	#4 - 1/4"	90° Right Angle Nozzle	Single Orifice	3/8" Male, Brass Thread	Tungsten Carbide	-	$283.80 $258.00 (excludes GST)
BNT14522	#2 - 1/8"	60° Forward Angle Nozzle	Double Orifice	3/8" Male, Brass Thread	Tungsten Carbide	-	$283.80 $258.00 (excludes GST)
BNT19042	#4 - 1/4"	90° Right Angle Nozzle	Double Orifice	3/8" Male, Brass Thread	Tungsten Carbide	-	$283.80 $258.00 (excludes GST)
BNT14523	#2 - 1/8"	60° Forward Angle Nozzle	Triple Orifice	3/8" Male, Brass Thread	Tungsten Carbide	-	$283.80 $258.00 (excludes GST)
BNT14524	#2 - 1/8"	60° Forward Angle Nozzle	Quad Orifice	3/8" Male, Brass Thread	Tungsten Carbide	-	$283.80 $258.00 (excludes GST)
BNT1453	#3 - 3/16"	60° Forward Angle Nozzle	Single Orifice	3/8" Male, Brass Thread	Tungsten Carbide	-	$283.80 $258.00 (excludes GST)
BNT14532	#3 - 3/16"	60° Forward Angle Nozzle	Double Orifice	3/8" Male, Brass Thread	Tungsten Carbide	-	$350.92 $319.02 (excludes GST)
BNT1454	#4 - 1/4"	60° Forward Angle Nozzle	Single Orifice	3/8" Male, Brass Thread	Tungsten Carbide	-	$283.80 $258.00 (excludes GST)
BNT14542	#4 - 1/4"	60° Forward Angle Nozzle	Double Orifice	3/8" Male, Brass Thread	Tungsten Carbide	-	$283.80 $258.00 (excludes GST)
BNT1902	#2 - 1/8"	90° Right Angle Nozzle	Single Orifice	3/8" Male, Brass Thread	Tungsten Carbide	-	$283.80 $258.00 (excludes GST)

Add to Cart

Tite-Space Angle Nozzles

Sku: P-BNTSN

Looking to improve your surface prep game? Look no further than Tite Space nozzles from BlastOne. These high-quality nozzles are designed to enhance efficiency and accuracy, allowing you to take your work to the next level. Key Features:

Precision-machined for accuracy
Easy to install and use
Compatible with a wide range of tools
Durable construction for long-lasting use

When you're working with metal, precision is key. That's why these Tite Space nozzles are designed to be as accurate as possible. Precision-machined to the highest standards, you can trust these nozzles to deliver consistent, reliable performance every time. Not only are these nozzles accurate, they're also incredibly easy to install and use. Whether you're a seasoned professional or a beginner, you'll have no trouble getting these nozzles up and running in no time. In addition to their ease of use, these nozzles are also highly versatile. They're compatible with a wide range of tools, so you can use them with whatever equipment you already have on hand. Finally, these nozzles are built to last. Made from high-quality materials, they're designed to withstand even the toughest working conditions. Whether you're working on a small project or a large-scale production run, you can rely on these Tite Space nozzles to deliver reliable performance day in and day out.
