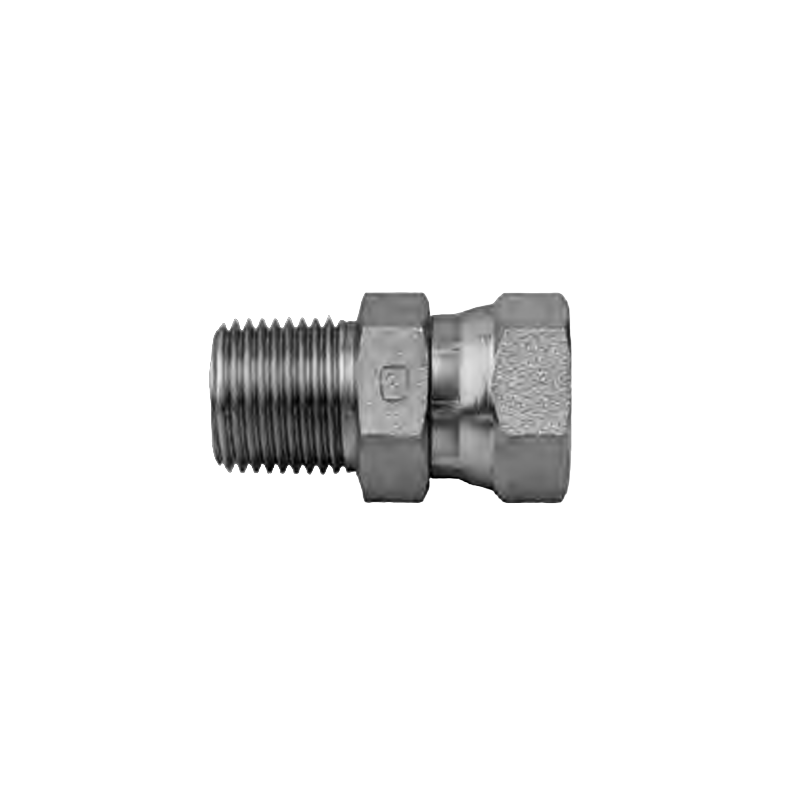

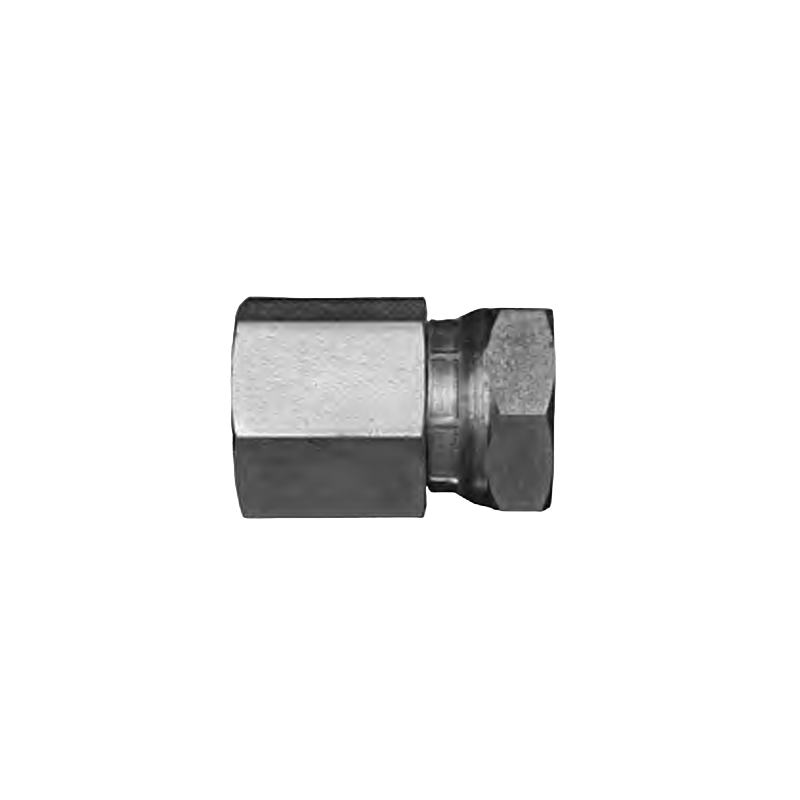

Swivel High Pressure Fittings

SKU: P-GRHPUA

Swiveling nut for easy fit-up – nut ‘locks up’ rigid when tightened
Ideal for Airless Hose applications
Steel
4:1 Safety Factor

Need a size not listed? Contact us!

Category: Uncategorized Tags: adaptor, female, Female Swivel, gr155665, GR155705, gr156684, gr156823, gr157705, gr157785, gr158256, gr162505, High-Safety Factor, Industrial Fittings, male, Male NPT, p-grhpua, steel, swivel, union, Union Adapter

Swivel High Pressure Fittings

SKU: P-GRHPUA

Web price i

$12.83 - $93.39
$11.66 - $84.90 (excludes GST)

Ship to

Item Size
Operating Pressure
Product Type
Quantity

$14.58 – $84.90

					Purchase Price
GR155570	1/4" NPTF x 1/4" NPTFSW	5000	Union Adaptor	-	$44.10 $40.09 (excludes GST)
GR155665	3/8" NPTM x 3/8" NPTFSW / 10mm NPTM x 10mm NPTFSW	4000	Union Adaptor	-	$33.36 $30.33 (excludes GST)
GR155705	1/8" NPTM x 1/4" NPSFSW / 3mm NPTM x 6mm NPTFSW	5000	Union Adaptor	-	$17.18 $15.62 (excludes GST)
GR155865	1/2" NPTF x 1/2" NPTFSW / 13mm NPTF x 13mm NPTFSW	3500	Union Adaptor	-	$44.45 $40.41 (excludes GST)
GR156684	1/2" NPTM x 1/2" NPTFSW	3500	Union Adaptor	-	$93.39 $84.90 (excludes GST)
GR156823	1/4" NPTM x 1/4"NPTFSW / 6mm NPTM x 6mm NPTFSW	5000	Union Adaptor	-	$25.17 $22.88 (excludes GST)
GR157705	1/4" NPTM x 3/8" NPTFSW / 6mm NPTM x 10mm NPTFSW	5000	Union Adaptor	-	$26.43 $24.03 (excludes GST)
GR157710	1/4" NPTM x 1/8" NPTFSW / 6mm NPTM x 3mm NPTFSW	5000	Union Adaptor	-	$16.04 $14.58 (excludes GST)
GR157785	3/4" NPTM x 3/4" NPTFSW / 20mm NPTM x 20mm NPTFSW	2200	Union Adaptor	-	$53.34 $48.49 (excludes GST)
GR158256	1/2" NPTM x 3/8" NPTFSW / 13mm NPTM x 10mm NPTFSW	3500	Union Adaptor	-	$60.72 $55.20 (excludes GST)
GR162505	3/8" NPTM x 1/2" NPTFSW / 10mm NPTM x 13mm NPTFSW	3500	Union Adaptor	-	$54.26 $49.33 (excludes GST)

Add to Cart

Swivel High Pressure Fittings

Sku: P-GRHPUA

Swivel Adaptor fittings simplify hose fit-up in complex piping systems. The swivel nut is designed to 'lock up' rigidly once tightened, providing a secure and leak-free connection. Constructed from high-strength steel, this adapter is built to endure the pressures and demands of industrial environments. With a 4:1 safety factor, it offers additional reliability and peace of mind, ensuring that connections maintain their integrity under various operational conditions.

Key Features:

Aids Airless Hose Installation: Swiveling nut allows for easy fit-up, locking up securely when tightened.
Robust Material: Made from steel for longevity and resilience.
Enhanced Safety: Comes with a 4:1 safety factor, supporting safer industrial operations.

Part Number	Qty 0-5	Qty 6-11	Qty 12 or more
GR158256	$55.20	$46.92	$44.16
GR157705	$24.03	$20.43	$19.22
GR155865	$40.41	$34.35	$32.33
GR155570	$40.09	$34.08	$32.07
GR162505	$49.33	$41.93	$39.46
GR157710	$14.58	$12.39	$11.66
GR156684	$84.90	$72.17	$67.92
GR155665	$30.33	$25.78	$24.26
GR157785	$48.49	$41.22	$38.79
GR156823	$22.88	$19.45	$18.30
GR155705	$15.62	$13.28	$12.50
