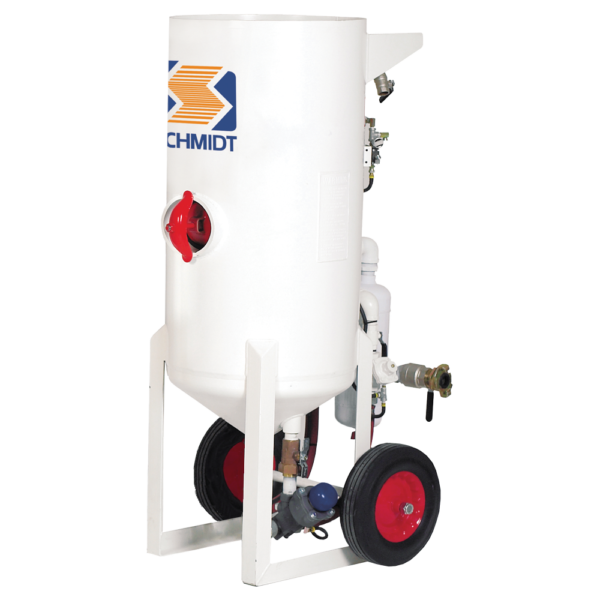

Schmidt® 10 cuft Blast Machine

SKU: BMS1001TV

10.0 cu ft Blast pot
Manufactured by Schmidt to BlastOne unique specifications
Single outlet Thompson Valve II abrasive metering valve
Approx 670 kg garnet abrasive capacity
Comes with pnuematic deadman handle and 20m of control hose
Excellent for a blastroom application with 1-2 blasters
Meets all Australian Standards

Categories: All Products, Blast Pots and Machines, Blasting, Contractor Pots Tags: abrasive capacity, BMS1001TV, multiple operators, pressure-hold system, Schmidt 10 cu.ft. Blast Machine, Terra valve, Thompson valve, Tri-clover Quick Connector, union end ball valve

Schmidt® 10 cuft Blast Machine

SKU: BMS1001TV

Web price i

Request Quote

Ship to

	Image		Purchase Price	Qty
BMS1001TV		-	Request Quote

Add to Cart

Schmidt® 10 cuft Blast Machine

Sku: BMS1001TV

The Schmidt 10 cu.ft. Blast Machine is specifically designed for multiple operator use, making it an excellent choice for blast room applications with 1-2 blasters. Equipped with normally closed type valving, this blast machine features either the responsive Terra valve or the highly consistent and accurate Thompson® valve for abrasive flow control.

Key features of the Schmidt 10 cu.ft. Blast Machine include:

10 cu.ft. capacity suitable for garnet (1500 lbs) and steel grit (2450 lbs)
Pressure-hold system for independent operation and continued blasting even if one valve is out of action
Single outlet with either Terra or Thompson® II abrasive metering valve, dual outlet version available
Optional fittings: Union end ball valve and Tri-clover Quick Connector for easy valve removal and maintenance
Comes with a pneumatic deadman handle and 55' of control hose, electric version available
Genuine Schmidt® product manufactured to BlastOne specifications

BlastOne offers a full range of abrasive blasting and corrosion control supplies, with warehouses across North America for your convenience. Consult your Area Manager for a customized solution to your blasting challenges.

		Purchase Price	Qty
P-GV2152	Schmidt Thompson® Metering Valve 2 II	$2,102.05 - $4,362.17 $1,910.95 - $3,965.61 (excludes GST)	See Options
GV2152007	Schmidt Thompson® Metering Valve 2 II	$2,348.81 $2,135.28 (excludes GST)
P-DM2123	Auto Air Valve for Blast Pot	$361.34 - $2,642.54 $328.49 - $2,402.31 (excludes GST)	See Options
DM2123107	Auto Air Valve for Blast Pot – 1-1/4 in	$495.26 $450.24 (excludes GST)
BA700000111	Manway / Handway Replacement Parts for Axxiom Schmidt Blast Machines	$755.56 $686.87 (excludes GST)
BA2497706	Grit Suppression Valve	$544.92 $495.38 (excludes GST)
BAP2100011	Pop-Up Seating Ring for Schmidt® Blast Pot	$102.30 $93.00 (excludes GST)
BAP2100010	Pop-Up Valve and Shaft for Schmidt® Blast Pot	$271.70 $247.00 (excludes GST)
BA700000118	Manway / Handway Replacement Parts for Axxiom Schmidt Blast Machines	$80.19 $72.90 (excludes GST)
P-DM2263	Response G2 Deadman Handle	$323.25 - $582.38 $293.86 - $529.44 (excludes GST)	See Options
DM2263002	Response G2 Deadman Handle – Pneumatic / G2	$323.25 $293.86 (excludes GST)
DM201150191	VBSII Conversion Kit for Manual Blowdown – Thompson or TeraValve Pot	$2,293.41 $2,084.92 (excludes GST)
