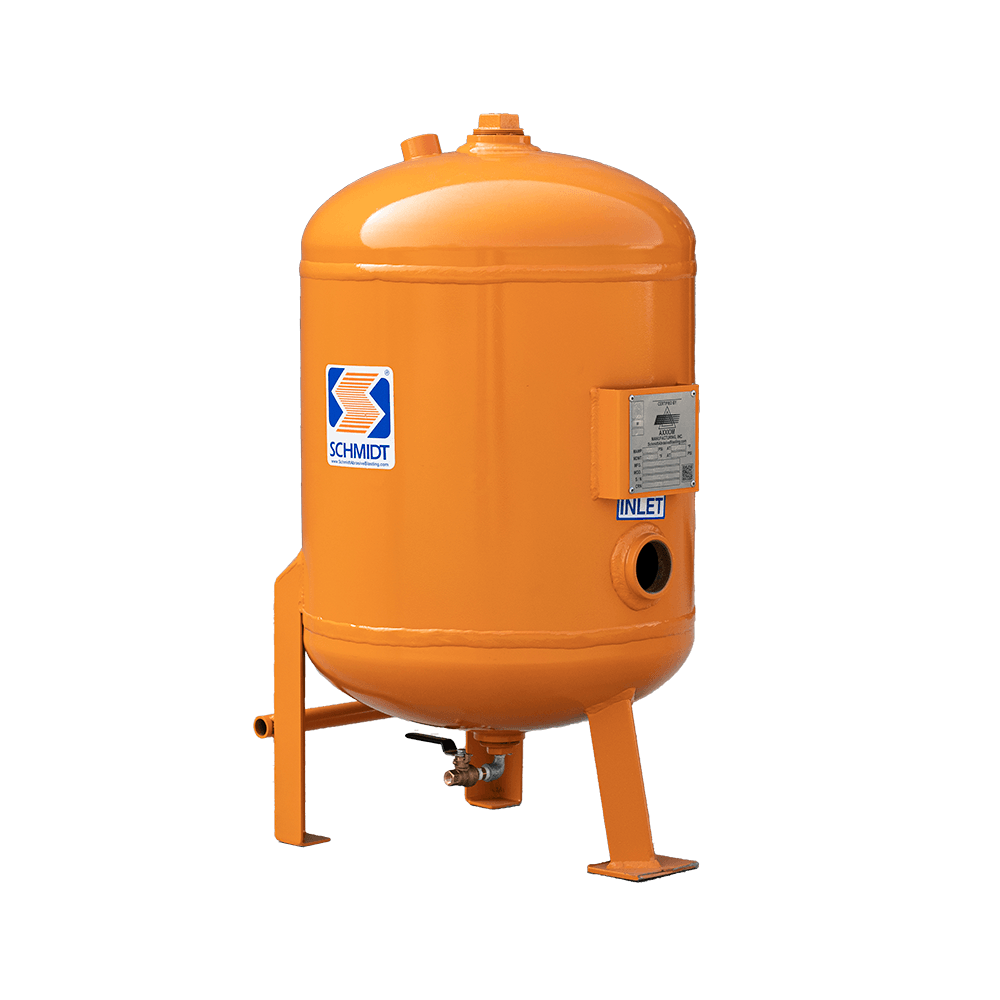

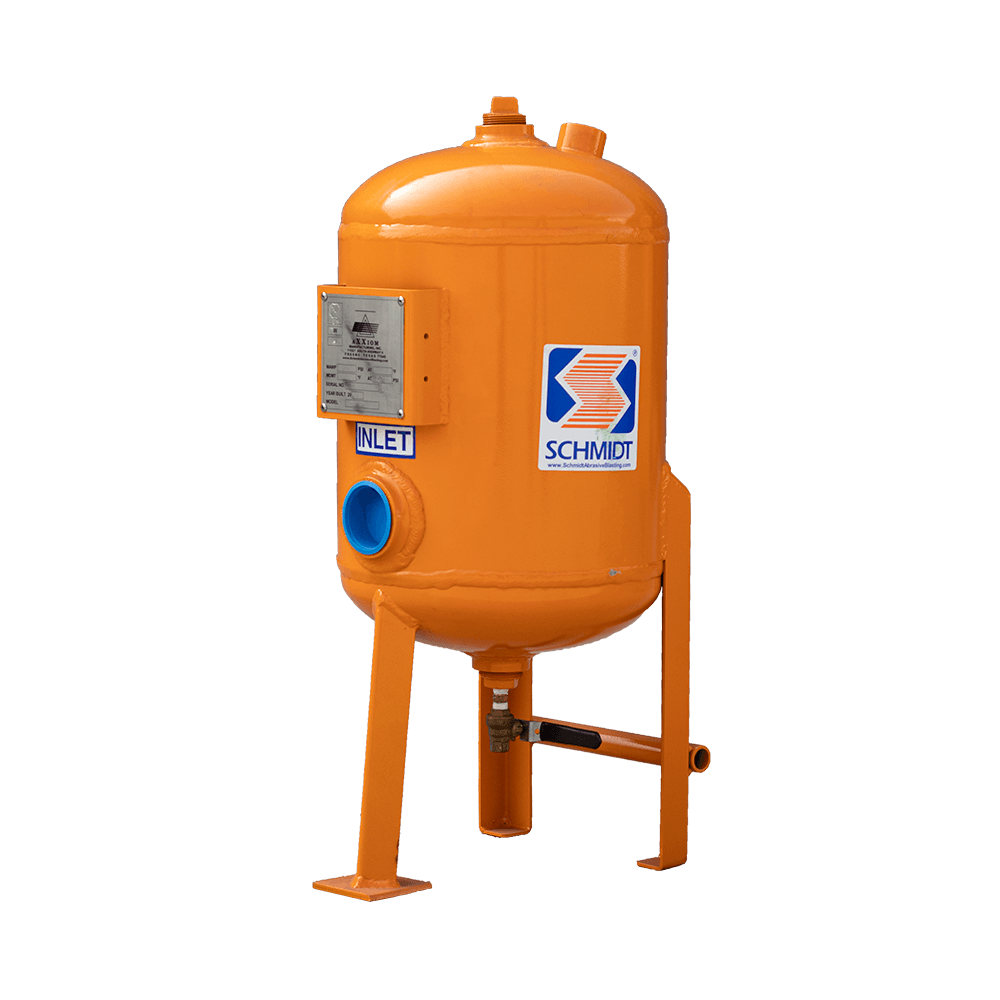

Portable Moisture Separator

Description

Introducing the Portable Moisture Separator, an essential tool for clean, dry air in production blasting. With clean, dry air, you can easily achieve up to 15% faster blasting. Experience no choking of your blast machine, no constant adjustment of your abrasive metering valve, and no never-ending clearing of damp abrasive from your blast machine. Enjoy a constant supply of clean and lean air and abrasive mix.

Key Features:

• Inlet size 2″ (50 mm) female thread
• Outlet sizes: 2″ (50 mm) female thread – 1″ (25 mm) female thread – plugged (top outlet)
• Rated for up to 800 cfm airflow volume at 150 PSI
• Connected in-line close to the blast machine
• Expansion flow-chamber design with internal stainless steel coalescing element
• Highly effective moisture droplet removal for peak productive blasting with minimal pressure loss
• Supplied with manual drain valve
• Heavy-duty construction ensures durability in abrasive blasting operation
• Includes axle, wheels, and handle
• Air fittings not included – specify and order separately

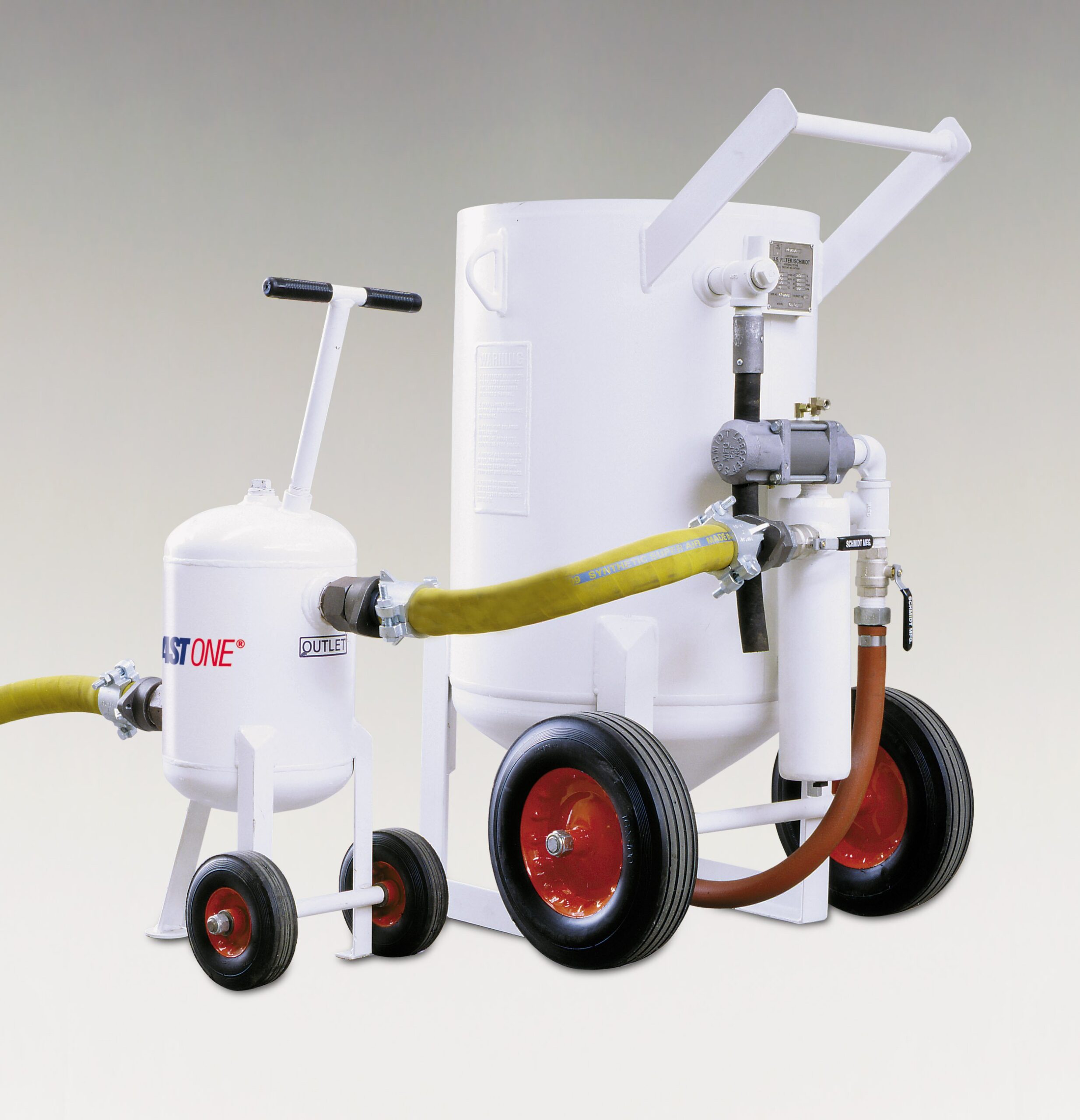

Installed before the blasting unit’s air inlet valve, the Portable Moisture Separator provides final stage moisture removal to prevent any remaining moisture from entering the blasting unit. Its tangential flow and element-less design result in minimal pressure loss, ensuring peak blasting productivity. The stainless steel coalescing pad provides non-restrictive moisture removal, and its heavy-duty construction ensures durability in the rough and tumble of abrasive blasting operation.
