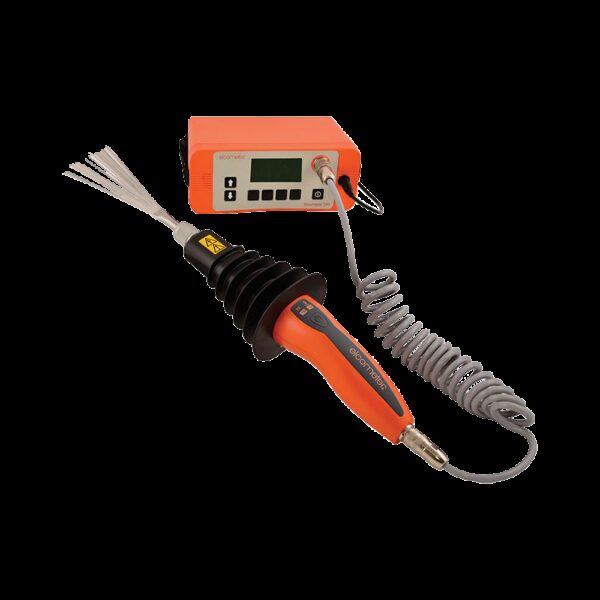

Elcometer 266 DC Holiday Detector, Certified (add handle)
Elcometer 266 holiday detector is used to test porosity on thick coatings up to 7.5mm (300 mils) thickness.
It’s ideal for inspecting coatings on pipelines and other protective coatings.
This holiday tester features a selectable voltage calculator to determine and set the correct test voltage based upon 1. the test standard and 2. the thickness of the coating being tested.
Order handle separately
Elcometer 266 DC Holiday Detector, Certified (add handle)
SKU: IND2664C
$4,698.31
$4,271.19 (excludes GST)
Ship to
In stock
Description
Elcometer 266 Holiday Detector with integrated voltage calculator to automatically set correct voltage for your coating thickness.
Adjustable Voltage: 0.5kV – 1kV in 50V steps 1kV to 30kV in 100V steps
Double-safety-switch on the handle to avoid accidental switch on (Grey/orange probe handles only)
Internal Jeep tester / Voltmeter guarantees the test voltage equals the selected voltage.
See and hear the alarms. Bright LEDs, loud buzzer, You will know when a holiday is detected!
Easy change the voltage range and select a different handle; Options: 5kV, 15kV, 30kV DC, 30kV DC continuous
Lots of probes, brushes plus rolling springs in stock.
Elcometer 266 DC Holiday Detector Features Explained
Voltage Calculator
Automatically sets the correct voltage from your coating thickness value. No need to use lookup tables. Enter the test standard and the coating thickness and the gauge will automatically programme the correct voltage.
Adjustable Voltage
No need for screwdriver: 0.5kV – 1kV in 50V steps, 1kV to 30kV in 100V steps. Sensitivity to current can be manually preset or automatically adjusted by the gauge for partially conductive coatings.
Internal Voltmeter/ Jeep tester
Ensures that the test voltage equals the selected voltage. The closed loop system ensures that the generated test voltage is accurately measured and continuously controlled, regardless of climatic conditions.

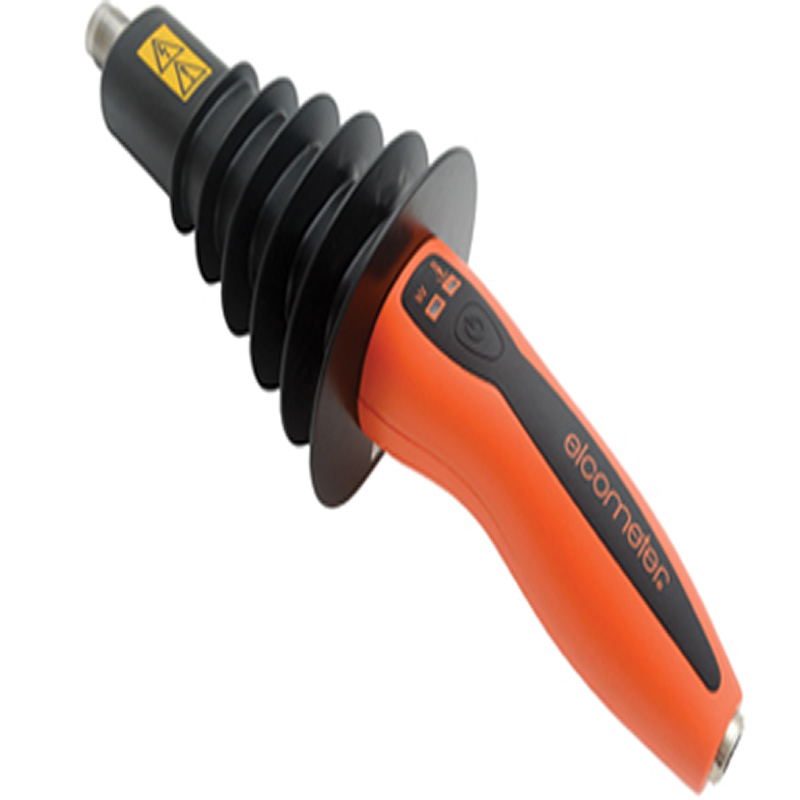

Interchangeable probe handles
Available, 5kV, 15kV and 30kV DC and DC continuous versions.
Audible and visual alarms
Visual and audible alarms are activated when a flaw is detected. Bright LEDs on the handle, as well as a loud audible alarm, clearly indicate if the gauge is on (Red) and when a spark is detected (Blue).
Battery pack
Can be recharged inside or outside the gauge for continued use. Batteries are fully charged within 4 hours and provide up to 40 hours continuous use between charges.
Universal probe adaptors
Enables the Elcometer 266 to work with all major holiday detector accessories.
Backlit Screen display
A large, backlit display enables easy viewing even in dark environments. When a flaw is detected the backlight also flashes.
Second hand grip
The optional second handgrip is designed for two handed use without compromising its safety. Ideal for testing pipes and tank floors.
Elcometer 266 DC Holiday Detector Safety Features
Dual safety switches on handle to avoid accidental switch on. 2-stage safety switch ensures that if the Elcometer 266 handle is not gripped, the handle will switch off.
Specialised ribbing provides superior protection while an optional second hand grip is ideal for two handed use. This holiday detector has been specifically designed to meet standard EN61010.
The speaker on the gauge clearly emits a ticking noise to indicate that there is a voltage at the handle.
A loud audible alarm is activated when a spark is detected. The beep volume can also be adjusted to ensure it can be heard – even in noisy environments.
Technical Specification Elcometer 266 Holiday Detector
Description Part Number Certificate
Elcometer 266* D266—-4
Optional Calibration Certificate available
High Voltage Output Accuracy ±5% or ±50V below 1000 Volts
Operating Temperature 0°C to 50°C (32°F to 120°F)
Power Supply Rechargeable Battery Pack: battery fully charged within 4 hours
Measured Current Flow Accuracy ±5% of full scale ; 0 – 100μA maximum Output Current
Typical Battery Life – Backlight Off (On) DC5: 40 (20) hours
DC15: 20 (15) hours
DC30: 10 (8) hours
Instrument Case Dimensions Waterproof, ABS case: 520 x 370 x 125mm (20.5 x 14.5 x 5”)
Weight Base unit (including battery pack): 1.2kg (2.7lb), Handle: 0.6kg (1.3lb)
Packing List Elcometer 266 DC Holiday Detector, battery pack, curly connection cable for high voltage handle, 10m (32″) signal return lead, battery charger with UK, EUR, US and AUS plugs, band brush, shoulder strap, tough plastic carry case and operating instructions
