Blast and Vacuum Workhead Complete Kits

SKU: P-VCBV

Complete Range of blast and vacuum work heads and equipment
Typically work best on flat surfaces, custom units are available upon request

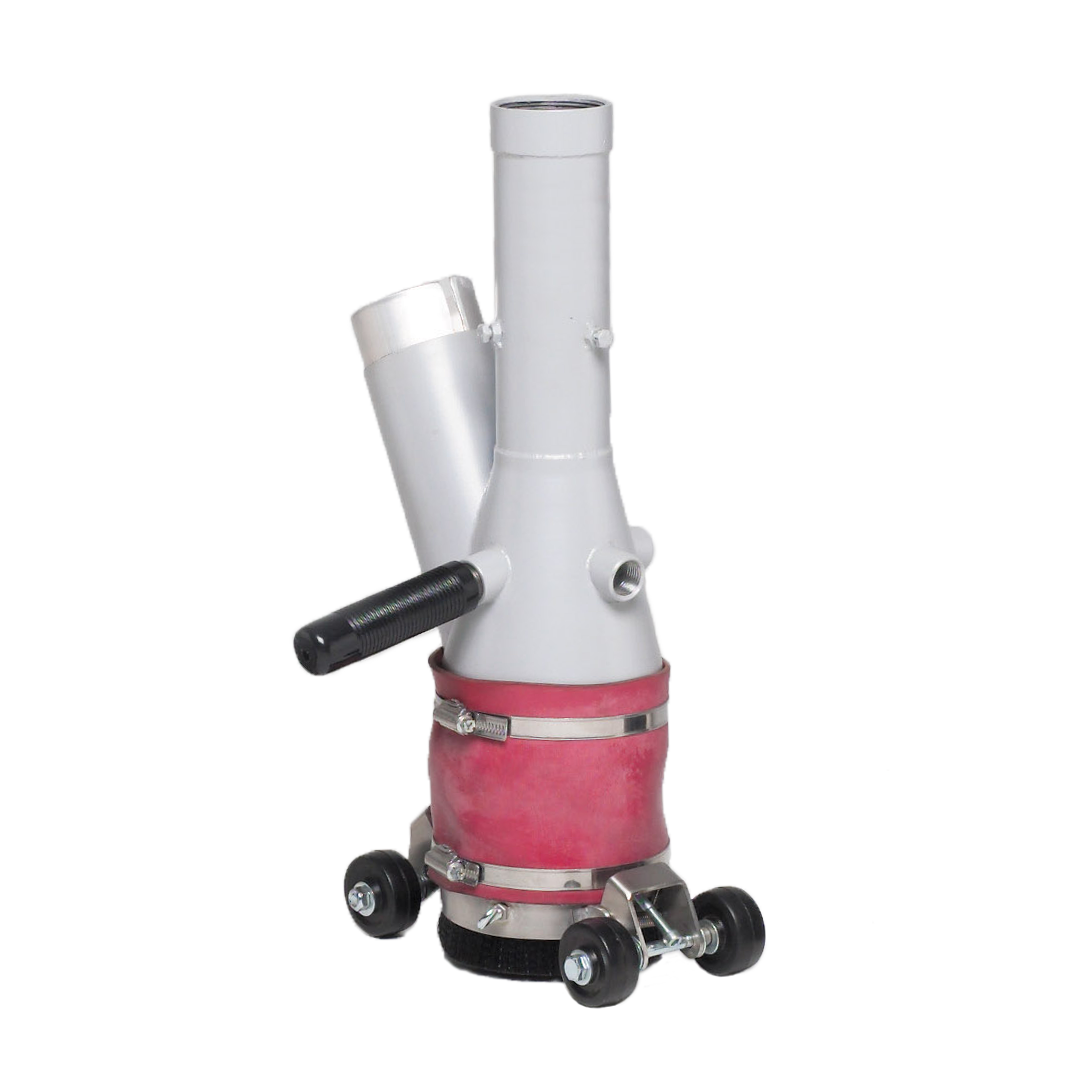

Largest workhead available – Large with Wheels
Pistol Grip – *Most Popular* easiest to hold onto

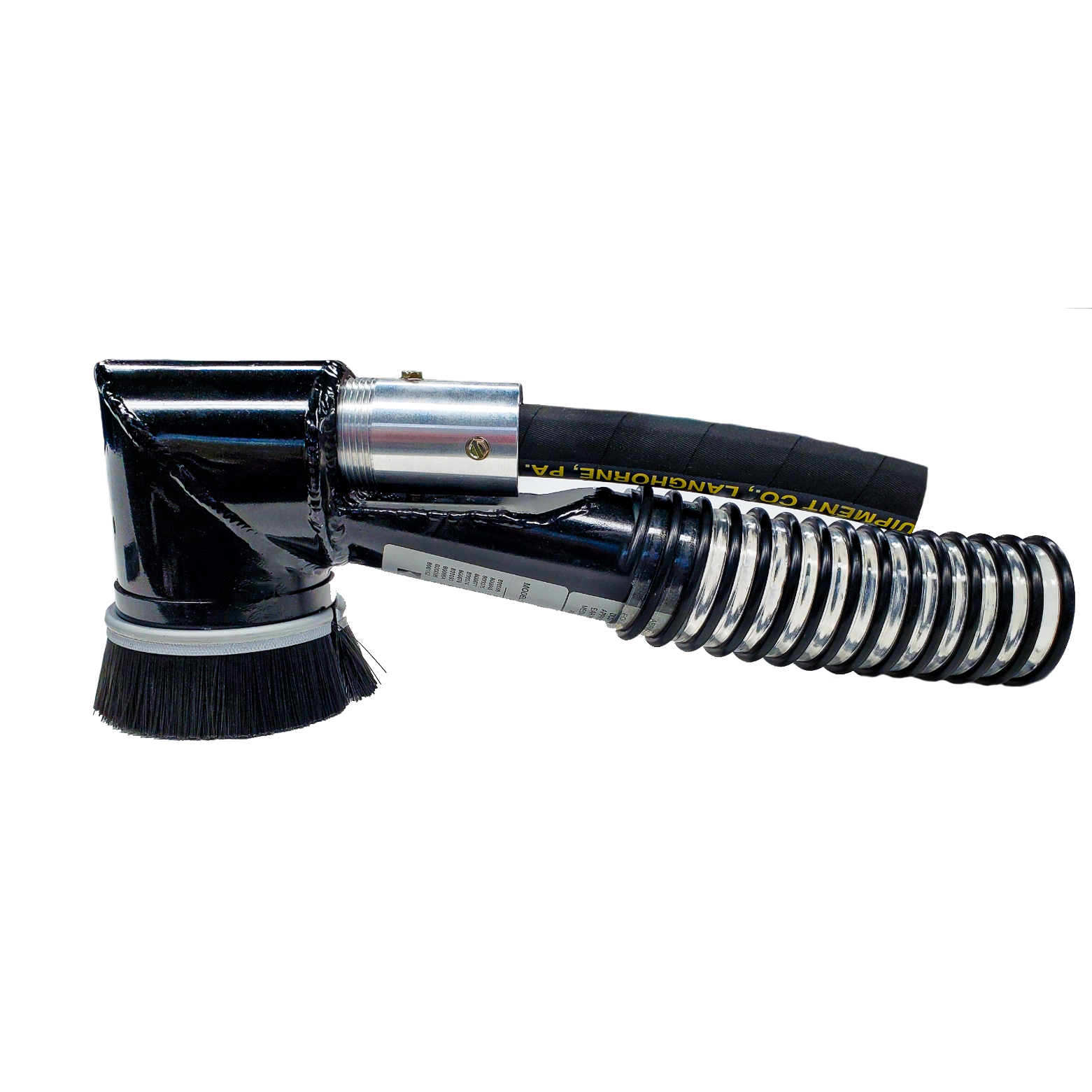

Right Angle – Designed to get into smaller areas

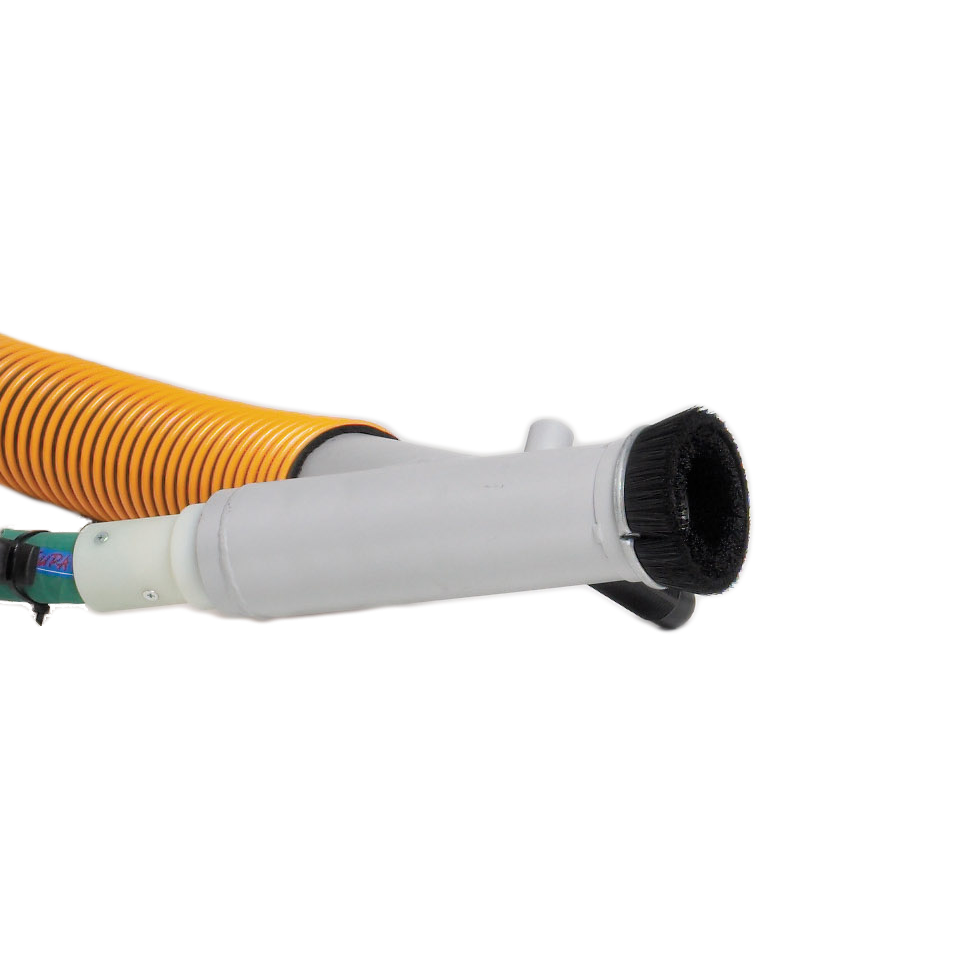

Standard Unit – the Original Blast and Vac head
aka: Blastnvac 6 Head
Choose your style

Categories: All Products, Blast and Vacuum Blasters, Blasting Tags: blast, blasting, Blastnvac 6 Head, bnv, bnv6, head, hose, kit, long, nozzles, vacuume, VCBNV, venturi, wheels, work, workhead

Blast and Vacuum Workhead Complete Kits

SKU: P-VCBV

Web price i

$5,183.49 - $8,863.77
$4,712.26 - $8,057.97 (excludes GST)

Ship to

Product Type
Quantity

$4,712.26 – $8,057.97

			Purchase Price
VCBV100	Large with wheels / BNV-6	-	$7,124.61 $6,476.92 (excludes GST)
VCBV120	Right Angle	-	$8,863.77 $8,057.97 (excludes GST)
VCBV200	Standard / BNV-3	-	$5,183.49 $4,712.26 (excludes GST)

Add to Cart

Blast and Vacuum Workhead Complete Kits

Sku: P-VCBV

Largest Blast & Vac Workhead in range. Typically used for blasting flat surfaces. Wheel attachments help improve productivity and capture of blast. Integrity of operation requires that operator keep the Brush Seals in contact with the work surface. This blast and vacuum tool has four wheels which help the operator keep a good seal on the surface. Uses an inner and outer set of replaceable brushes to provide a seal against the work surface.

APPLICATIONS

Use on dust sensitive projects where containment is not possible. Suitable for removal of toxic paints like lead.

SPECIFICATIONS

Blast and vacuum workheads attach to most standard blast machines.
Requires a separate vacuum source to keep the workhead under negative pressure.
Recovers abrasive and blast debris.

Ask your BlastOne Area Manager for a customized Blast "N" Vac solution.

		Purchase Price	Qty
VCBV250	Flat Outer Brush for VCBV200	$56.18 $51.07 (excludes GST)
VCBV280	Flat Heavy Duty Brush	$161.62 $146.93 (excludes GST)
VCBV255	Flat Inner Brush for VCBV200	$51.08 $46.44 (excludes GST)
DM226340420	Replacement Control Module for G2 Electric Pistol-Grip BRS Workhead	$750.41 $682.19 (excludes GST)
DM226300420	Replacement Control Valve Assembly for G2 Pneumatic Trigger Deadman	$883.37 $803.06 (excludes GST)
P-BNWKDNZL	Workhead Nozzles	$1,196.02 - $1,609.06 $1,087.29 - $1,462.78 (excludes GST)	See Options
VCBV066	Workhead Nozzles – #6 Nozzle, Long Venturi for BNV-3	$1,609.06 $1,462.78 (excludes GST)
VCBV104	Workhead Nozzles – #4 Nozzle, Long Venturi for BNV-3	$1,196.02 $1,087.29 (excludes GST)
VCBNV030	Replacement Wear Sleeve for BNV-6 Vacuum Port	$315.16 $286.51 (excludes GST)
VCBV006	Blast and Vacuum Central Wear Liner	$70.95 $64.50 (excludes GST)
VCBV023	Blast and Vacuum Central Wear Liner	$73.32 $66.65 (excludes GST)
VCBV025	Replacement Handle for VCBV200	$68.59 $62.35 (excludes GST)
VCBV201	Fine Thread Nozzle Holder for VCBV200	$145.52 $132.29 (excludes GST)
VCBV2605	Inner and Outer Brush Set – Inside Corner for VCBV200	$163.04 $148.22 (excludes GST)
VCBV2705	Inner and Outer Brush Set – Outside Corner for VCBV200	$154.90 $140.82 (excludes GST)
VCBV170	Wear Liner Lower Main Body for VCBV-200	$345.30 $313.91 (excludes GST)
