ATEX Zone 1 Rated, Transformer for LED Floodlight - 4 Outlet
EX 400VA TRANSFORMER ELECTRICAL POWER
TECHNICAL SPEC
- Area of Classification: Zone 1 and 2 (Gas), Zone 21 and 22 (Dust)
- Input Voltage: 110VAC (16A Plug), 230VAC (16A Plug), 400VAC (32A Plug)
- Output Voltage: 12VAC (4 x sockets), 24VAC (4 x sockets), 110VAC (4 x sockets), 230VAC (4 x sockets)
- Frequency: 50/60Hz
- Operating Temperature: -20°C to +40°C
- Ingress Protection: IP66
- Temperature Classification: T4/T5
- Plug Options: ATX, CEAG, STAHL
- Socket Options: ATX, CEAG, STAHL
- Weight: 17kg
- Dimensions: 560mm x 460mm x 300mm
- Product Warranty: 1 year
ATEX Zone 1 Rated, Transformer for LED Floodlight - 4 Outlet
SKU: BABLSATR23024
$8,673.09
$7,884.63 (excludes GST)
Ship to
Description

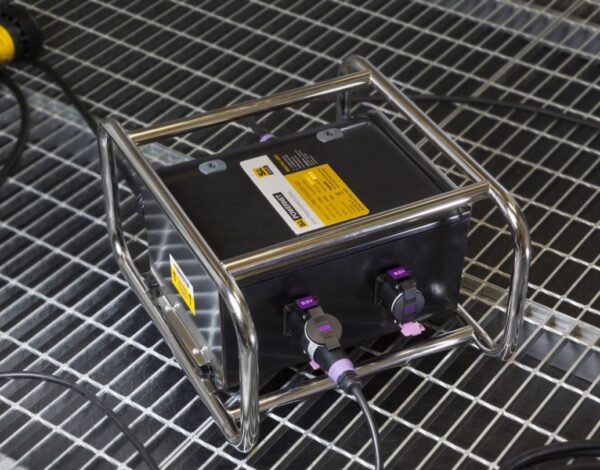

The POWERNET EX 400VA Transformer comprises a composite box mounted via shock absorbers onto a marine-grade steel frame, with a special internal chassis securing the internal components. The result is a phenomenally rugged electrical transformer, but with no compromise on portability – at only 17kg and 560mm wide, it’ll go anywhere you need it.
A range of voltage and output options are available, as well as a Centre Tapped to Earth variant. The power transformer is supplied fully tested and ready for use.
IECEX CERTIFIED TRANSFORMERS
The EX transformer is ATEX & IECEX certified so that it can be operated in Zone 1, Zone 2, Zone 21 & Zone 22 classified hazardous areas. The electrical transformer can operate in temperatures ranging from -20˚ to +40 ˚ C.

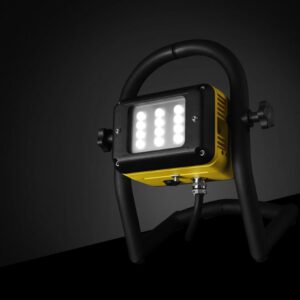

The portable, tough & durable unit is compatible with our SA Lumin Worklights so that you can illuminate your workspace with a reliable power supply unit.
Applicable to many different hazardous environments and industries, the EX 400VA Transformer also comes with a 1-year warranty.
