Holiday Pinhole Detection
Showing 16–30 of 30 results
-
INDHHDFANBRSHBlastOne offers all replacement parts for DeFelsko industrial testing equipment on-line for easy ordering, access to instructional material, etc. This 6" stainless steel fan brush for the PosiTest HHD series is compatible with the original HHD and the HHD C units, and come standard with each new unit. It is available as a replacement part here. MPN: HHDFANBRSHINDHHDFANBRSHBlastOne offers all replacement parts for DeFelsko industrial testing equipment on-line for easy ordering, access to instructional material, etc. This 6" stainless steel fan brush for the PosiTest HHD series is compatible with the original HHD and the HHD C units, and come standard with each new unit. It is available as a replacement part here. MPN: HHDFANBRSH
-
INDHHDSTRAPThe DeFelsko HHD shoulder strap, which is included in the full HHD kit, is available separately as a replacement item (or as an optional add-on when purchasing the basic HHD kit).INDHHDSTRAPThe DeFelsko HHD shoulder strap, which is included in the full HHD kit, is available separately as a replacement item (or as an optional add-on when purchasing the basic HHD kit).
-
INT266200334CDiscover the Elcometer 266 DC Holiday Detector Handle, your ultimate companion for efficient and reliable coating inspection. Operating within a voltage range of 0.5 to 30kV, this continuous voltage handle is engineered for extensive and uninterrupted use. Its innovative design eliminates the need for constant hand contact, facilitating seamless operation over large areas.
- Operates within 0.5 to 30kV voltage range for broad application scope.
- Continuous voltage delivery for extensive use without fatigue.
- No constant hand contact required, enhancing user convenience.
INT266200334CDiscover the Elcometer 266 DC Holiday Detector Handle, your ultimate companion for efficient and reliable coating inspection. Operating within a voltage range of 0.5 to 30kV, this continuous voltage handle is engineered for extensive and uninterrupted use. Its innovative design eliminates the need for constant hand contact, facilitating seamless operation over large areas.- Operates within 0.5 to 30kV voltage range for broad application scope.
- Continuous voltage delivery for extensive use without fatigue.
- No constant hand contact required, enhancing user convenience.
-
The PosiTest® HHD - DeFelsko's solution for detection of holidays, porosity, pinholes, leaks and other discontinuities in coatings and linings that are more than 10 mils (250 microns) thick.
- Advanced pulse or continuous DC technology
- Lightweight and ergonomic design
- Auto voltage calculator based on coating thickness
- Multiple electrode options with custom availability
- Long Form Certificate of Calibration included
- PosiTest HHD Kit (2 versions)
- Stick-type with Pulsed DC Output
- 72 Wh Li-ion battery pack with built-in charge indicator
- Durable Pelican Storm Case
- 20" Electrode Rod (or substitute 5" Electrode, with suffix -S after the part number)
- Shoulder Strap
- 25' earthing cable and smart charger with universal AC voltage input
- PosiTest HHD Basic Kit (same as above HHD kit except for the following)
- 36 Wh Li-ion battery pack instead of 72 Wh
- Hard Shell Case instead of Pelican Case
- 5" Electrode Rod
- (Note - the above HHD instruments can be converted to wand configurations, aiding in testing hard-to-reach areas, by adding the optional HHDWAND Handheld Wand.)
- PosiTest HHD C Kit
- Wand-type with Continuous DC Output
- 18650 Li-ion Batteries (4)
- Hard Shell Case
- Extension rod is not required, but available
- Rolling Spring Electrodes, and Conductive Paddle to aid in precise location of holidays
- Flat Wire Brush Electrodes
- Half-Circle Brush Electrodes
- Electrode Adaptors, makes other brands of electrodes compatible with the HHD
- Electrode Rods (for HHD) and Extension Rod (for HHD C)
-
INDHHDWAND
- 1.5m insulated cable, coverts the PosiTest® HHD to a wand-type instrument
- Not for voltages >15kV
INDHHDWAND- 1.5m insulated cable, coverts the PosiTest® HHD to a wand-type instrument
- Not for voltages >15kV
-

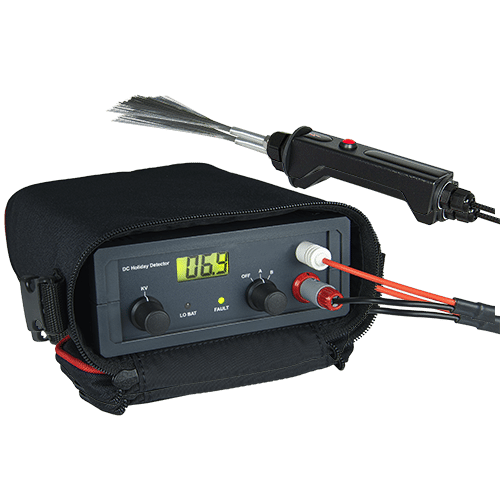

INDPT20KBlastOne Holiday Tester for detecting pinholes and flaws in coatings on conductive substrates.
Enquire about other models for 6Kv and 30Kv
Accessories also available
Calibration Certificate is an optional extra.INDPT20KBlastOne Holiday Tester for detecting pinholes and flaws in coatings on conductive substrates.
Enquire about other models for 6Kv and 30Kv
Accessories also available
Calibration Certificate is an optional extra. -
IND2664C
Elcometer 266 holiday detector is used to test porosity on thick coatings up to 7.5mm (300 mils) thickness.
It's ideal for inspecting coatings on pipelines and other protective coatings.
This holiday tester features a selectable voltage calculator to determine and set the correct test voltage based upon 1. the test standard and 2. the thickness of the coating being tested.
Order handle separatelyIND2664CElcometer 266 holiday detector is used to test porosity on thick coatings up to 7.5mm (300 mils) thickness.
It's ideal for inspecting coatings on pipelines and other protective coatings.
This holiday tester features a selectable voltage calculator to determine and set the correct test voltage based upon 1. the test standard and 2. the thickness of the coating being tested.
Order handle separately -

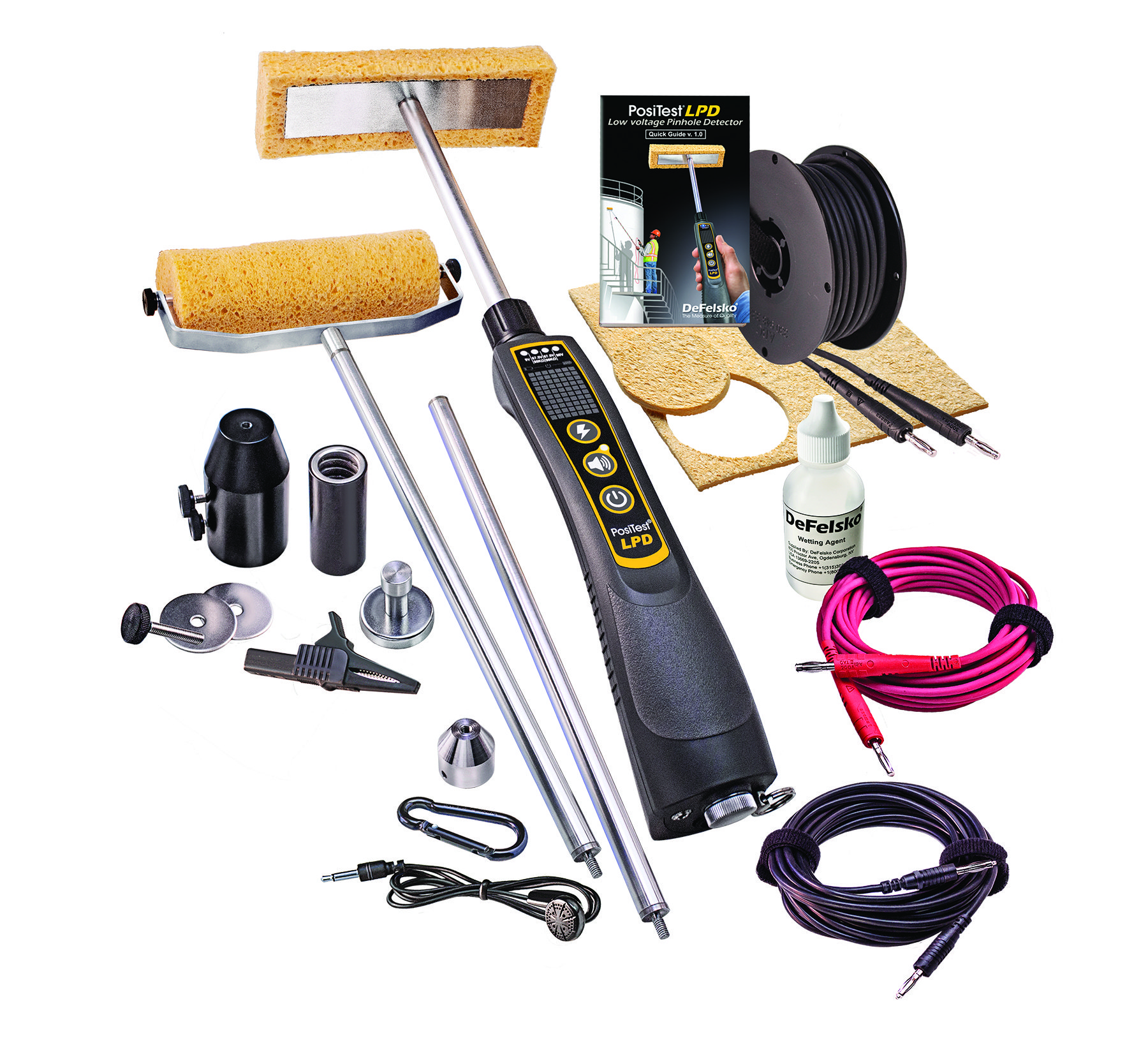

INDLPDKITCAVAILABLE FOR RENTAL OR PURCHASE
- Wet sponge spark tester for metal and concrete substrates
- Test coatings up to 20 mil
- Has visual reassurance that the instrument is properly grounded
- Calibration Certificate shows traceability to NIST (Long Form) Included
- Two Year Warranty
- Conforms to ISO 14654, ISO8289-A, ASTM G62, G6, D5162, BS7792-2, NACE TM0384, SP0188, AS3894.2, JIS K 6766
- Complete Kit Includes: All the contents from the Basic Kit, As well as: Roller Sponge, Internal Diameter Sponge, additional 8" x 8" Sheet sponge for custom jobs, Wetting Agent, Extension rods for an additional 2' of reach, universal adapters to extend existing paint rollers and poles, 40' of ground wire, 15' of hot wire, and magnetic grounding post
INDLPDKITCAVAILABLE FOR RENTAL OR PURCHASE- Wet sponge spark tester for metal and concrete substrates
- Test coatings up to 20 mil
- Has visual reassurance that the instrument is properly grounded
- Calibration Certificate shows traceability to NIST (Long Form) Included
- Two Year Warranty
- Conforms to ISO 14654, ISO8289-A, ASTM G62, G6, D5162, BS7792-2, NACE TM0384, SP0188, AS3894.2, JIS K 6766
- Complete Kit Includes: All the contents from the Basic Kit, As well as: Roller Sponge, Internal Diameter Sponge, additional 8" x 8" Sheet sponge for custom jobs, Wetting Agent, Extension rods for an additional 2' of reach, universal adapters to extend existing paint rollers and poles, 40' of ground wire, 15' of hot wire, and magnetic grounding post
-

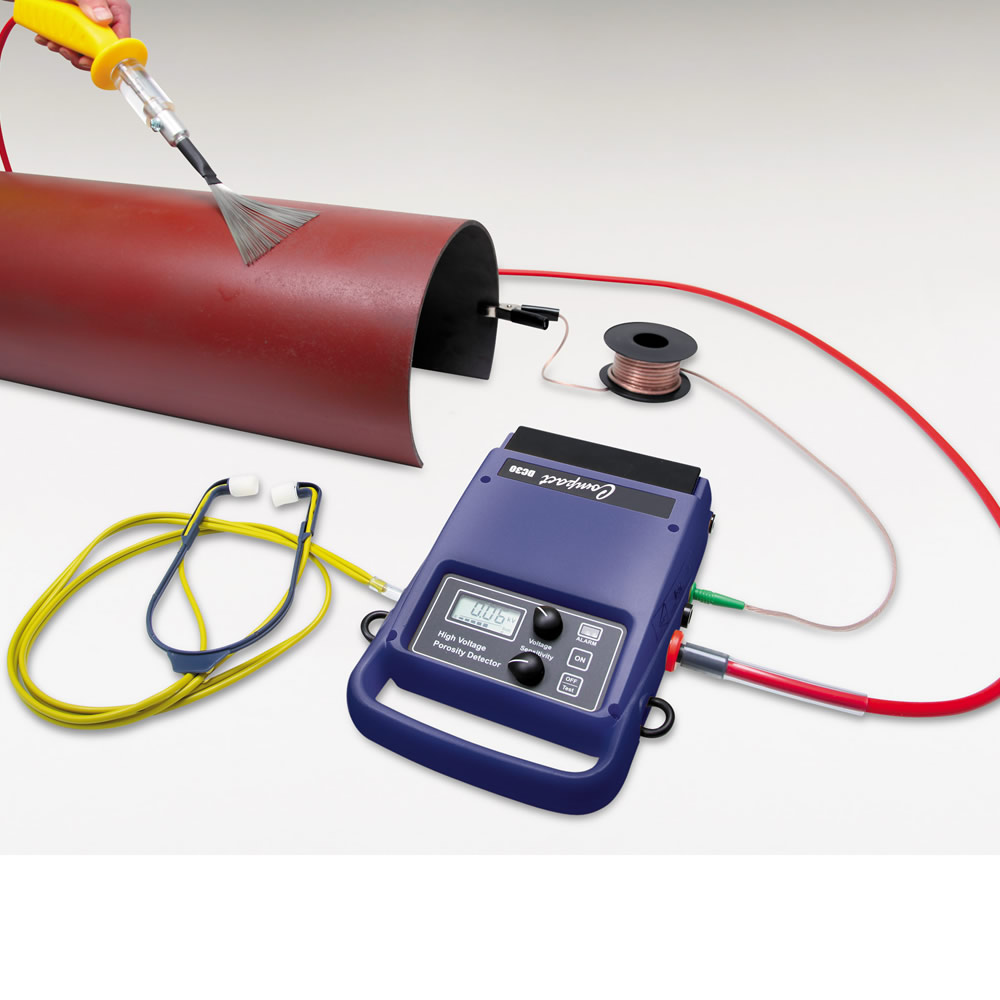

IND0606BlastOne PCWI Porosity Detector Holiday Detector Kit. 2 Models available. Recommended for all coating services, chlorinated rubber and on very thick coatings Compact pinhole detector design with display showing LED voltage The Holiday Detector comes with clip-on battery and storage case When the porosity detector, detects porosity there is a audible and visual alarm Available in two fully adjustable ranges of voltage - pulse type: 0-15 kV 0-30 kV Options including fan & flat brushes.IND0606BlastOne PCWI Porosity Detector Holiday Detector Kit. 2 Models available. Recommended for all coating services, chlorinated rubber and on very thick coatings Compact pinhole detector design with display showing LED voltage The Holiday Detector comes with clip-on battery and storage case When the porosity detector, detects porosity there is a audible and visual alarm Available in two fully adjustable ranges of voltage - pulse type: 0-15 kV 0-30 kV Options including fan & flat brushes.
-
IND280SKIT
- Ideal for testing clean, damp, dirty or slightly conductive coatings
- Flashing display, LED and adjustable volume alarm indicates holiday identification
- 0.5 - 35kV range for detecting porosity in coatings up to 25mm thick
- Ergonomic safety trigger inside handle cuts power upon release
- Durable, shock- and water-resistant design ensures long life
- Shoulder strap allows for continuous use
- Can be used in accordance with AS 3894.1, ANSI/AWWA C203, ANSI/AWWA C214, ASTM D4787, ASTM D5162, ISO 29601, JIS G 3491, JIS G 3492, NACE RP0274, NACE SP0188, NACE SP0490, NACE TM0186, NACE TM0384
IND280SKIT- Ideal for testing clean, damp, dirty or slightly conductive coatings
- Flashing display, LED and adjustable volume alarm indicates holiday identification
- 0.5 - 35kV range for detecting porosity in coatings up to 25mm thick
- Ergonomic safety trigger inside handle cuts power upon release
- Durable, shock- and water-resistant design ensures long life
- Shoulder strap allows for continuous use
- Can be used in accordance with AS 3894.1, ANSI/AWWA C203, ANSI/AWWA C214, ASTM D4787, ASTM D5162, ISO 29601, JIS G 3491, JIS G 3492, NACE RP0274, NACE SP0188, NACE SP0490, NACE TM0186, NACE TM0384
-
BlastOne offers all instruments and accessories from the DeFelsko range on-line, for easy access to ordering, operational manuals, etc.
These flat wire brushes are the electrodes suited for PosiTest HHD high voltage holiday detection on flat surfaces. Additional information is as follows:
- Multiple sizes available between 2 - 48" wide (51 to 1219 mm)
- Flat wire brushes do not require couplers or spring connectors like the rolling spring electrodes do. Each brush is supplied ready-to-use.
- Sold individually.
-
INDLPDKITB
- Wet sponge spark tester
- Test coatings up to 12 mil (300 micron) for pinholes or holidays
- Used in accordance with AS 3894-2 Standard for coatings less than 10 mil (250 micron) thick (AS 3894.2-2002, Site testing of protective coatings, Method 2: Non-conductive coatings — Continuity testing — Wet sponge method)
- Audible pinhole-detection alarm
- Powered by three AA batteries
- Holiday detector Kit includes detector probe unit, earth lead with alligator clip and instructions
INDLPDKITB- Wet sponge spark tester
- Test coatings up to 12 mil (300 micron) for pinholes or holidays
- Used in accordance with AS 3894-2 Standard for coatings less than 10 mil (250 micron) thick (AS 3894.2-2002, Site testing of protective coatings, Method 2: Non-conductive coatings — Continuity testing — Wet sponge method)
- Audible pinhole-detection alarm
- Powered by three AA batteries
- Holiday detector Kit includes detector probe unit, earth lead with alligator clip and instructions
-

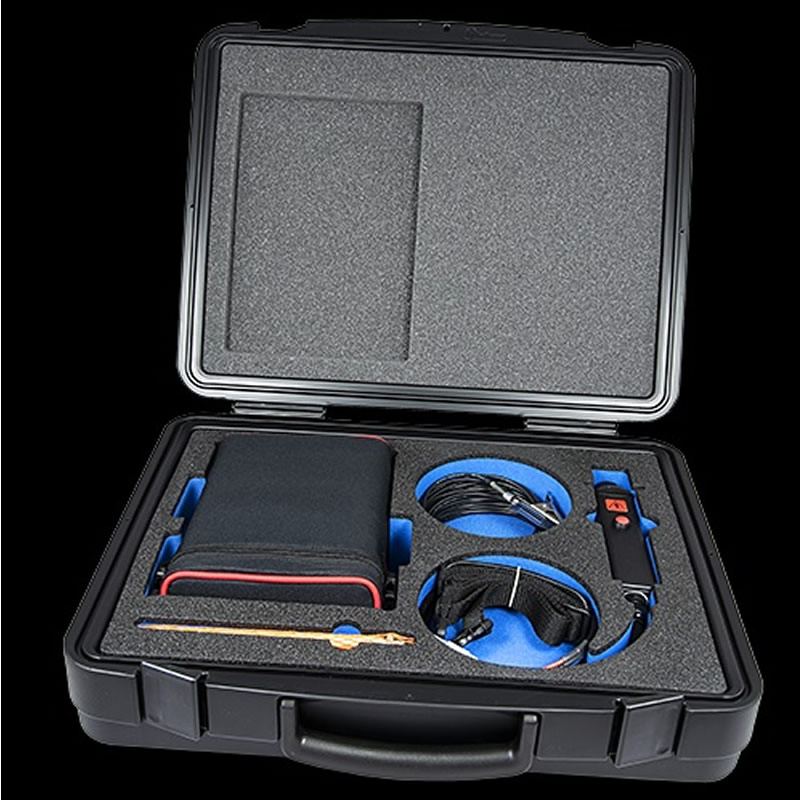

INDPT30KPT Holiday Detector Kit 0-30kV, c/w band brush probe
- For use with coatings up to 8,000 microns.
- Resolution of 0.1kV
INDPT30KPT Holiday Detector Kit 0-30kV, c/w band brush probe- For use with coatings up to 8,000 microns.
- Resolution of 0.1kV
-
INCASEBOProtect your valuable instruments with this new robust carry case.
- Suitable for small hand held devices (e.g. DeFelsko Positector range)
- Includes pick and pluck foam for secure storage
- Case internal dimensions: 235mm L x 181mm W x 105mm D
- Press & pull latches
- Pad-lockable hasps
INCASEBOProtect your valuable instruments with this new robust carry case.- Suitable for small hand held devices (e.g. DeFelsko Positector range)
- Includes pick and pluck foam for secure storage
- Case internal dimensions: 235mm L x 181mm W x 105mm D
- Press & pull latches
- Pad-lockable hasps
-
BlastOne offers all instruments and accessories from the DeFelsko product line.
These rolling springs are the electrodes suited for DeFelsko® high voltage holiday detection on steel pipes, and additional information is as follows:
- Multiple sizes available, 4-36"
- Each electrode includes two pre-installed spring couplers. Replacement couplers are available in packs of 2.
- Requires one Spring Connector to connect either DeFelsko or SPY spring electrodes to PosiTest HHD (sold separately).
- Sold Individually
What is the difference between a holiday detector and a porosity detector?
A holiday detector and a proximity detector are in essence the same thing. An electrical current is run over the painted/coated steel surface and in the event of porosity or pinhole in the coating (also known as a holiday) the current short-circuits to earth and creates an alarm. With high-voltage holiday detectors this can create a spark – hence the name spark tester.
BlastOne has complete range of coating inspection instrumentation, such as digital coating thickness gauge, CTG, ferrous or nonferrous, surface profile meters / surface profile measuring device, testex tape, dew point meters, and magnetic surface thermometers. There are many spark tester manufacturers which make different configurations of spark tester/holiday detectors – depending on the application and the complexity of the surface that requires testing for porosity in the paint coating
High-voltage spark tester is come with different width bristle brushes or rolling spring probes, which can be used on pipelines
Low-voltage sponge detectors and sponge holiday detectors are also available
Paint inspectors should use caution when using high voltage porosity detectors high-voltage holiday detector
It is important that 100% of the coated surface is tested for pinholes using a spark tester. Where ever a pinhole is located, a repair must be conducted in the paint coating – To ensure long coating life and and low maintenance
Most Holiday Detectors have Regulated direct current pulse voltage outputs
What voltage should I use for holiday detection/pinhole detection on my paint coating?
To determine which voltage I need to use on my spark tester, it is important to refer to the paint coating spec sheet and the relevant standards applicable to high-voltage porosity detection
Protective coatings are used to prevent corrosion on structural steel surfaces, but areas of thin or compromised coatings may not be immediately visible to the naked eye. These defects in the applied coating, known as pinholes or holidays, can adversely affect the longevity of the protective coating.
BlastOne’s offering of pinhole detection instruments are reliable tools in ensuring the quality of the applied coating. The instruments conform to all major industry standards, including NACE, ISO, ASTM, and ACA, for pinhole/holiday detection.
Additionally, the instruments are easy and safe to use and are designed to be easily adapted to measure surface of various shapes and sizes. Various kits and modular tools are also available, allowing the tools to adapt to any application.
