Coating Thickness
The Blast-One™ range of Coating Inspection Instruments & Kits facilitate for every type of Coating Inspector – Protective Coating, Industrial, Marine, etc
Paint Thickness Gauges are available for sale as well as long or short term rent / hire, including DeFelsko, Elcometer and more
Three ‘off the shelf’ coating thickness gauge paint inspectors kits are available in Australia – will suit a diverse range of inspection applications, including coating thickness measurement, wet film thickness, dry film thickness, dew point measurement, relative humidity measurement, surface profile gauge (SPG) etc
Custom designed kits are also available – please discuss your requirements and application with your Blast-One™ dealer
BlastOne Supplies Dry Film Thickness Gauges (DFT), Wet Film Thickness Gauges (WFT), Paint Gauges & other Coating Thickness Gauges (CTG) compliant to Australian Standards AS 3894.3—2002 “Site testing of protective coatings. Method 3: Determination of dry film thickness”
BlastOne is the leading supplier of coating thickness gauges & instruments in Australia
Showing 1–15 of 41 results
-
INDPGKITThe PosiTest Paint Gage (PG) - Defelsko's precision instrument for measuring paint layer thickness. By utilizing a proven destructive technique, the PosiTest PG can measure one or multiple paint layers (providing they are different in color) on any rigid substrate, including metal, plastic and wood. The Paint Gage Kit comes complete with the following: PosiTest PG instrument, 3 cutting tips (1x, 3x, and 10x), carry case, certificate of calibration, and more. MPN: PGKITINDPGKITThe PosiTest Paint Gage (PG) - Defelsko's precision instrument for measuring paint layer thickness. By utilizing a proven destructive technique, the PosiTest PG can measure one or multiple paint layers (providing they are different in color) on any rigid substrate, including metal, plastic and wood. The Paint Gage Kit comes complete with the following: PosiTest PG instrument, 3 cutting tips (1x, 3x, and 10x), carry case, certificate of calibration, and more. MPN: PGKIT -
Thickness standards are used to verify the accuracy and operation of coating thickness gauges. As a component of ISO 9000 or in-house quality control procedures, they are a practical alternative to sending instruments to DeFelsko for calibration.
DeFelsko offers various solutions for this process and this group of products is their premium version comprised of 4 Certified polystyrene blocks, intended for probes that measure thick coatings (60 mils / 1500 microns and up)
Select the Standard set that most closely matches the measuring range of your probe. See selection chart under the Description tab.
-
Each DeFelsko instrument family is factory calibrated and is designed to be ready-to-use upon arrival. Best practice and specifications determine when instruments should have their calibrations rechecked. For the PosiTector UTG probes, DeFelsko offers five different variations of stainless steel Step Blocks that are factory certified for checking their calibration, as follows:
- B1. Standard range Imperial. Five steps (100, 200, 300, 400, and 500 mils).
- B1M. Standard range Metric. Five Steps (2.5, 5, 7.5, 10, and 12.5 mm).
- B2. High range Imperial. Eight steps (1", 1.5", 2", 2.5", 3", 3.5", 4", and 4.5").
- B2M. High range Metric. Eight steps (25, 37.5, 50, 62.5, 75, 87.5, 100, and 112.5 mm).
- P. (Use with PosiTector UTG P probe.) Imperial labeled at 40, 60, 80, and 100 mils. (Metric equivalent 1, 1.5, 2, and 2.5 mm)
-
The PosiTector® 6000 probe family - DeFelsko's solution for non-destructive coating thickness measurement on metallic* substrates. This is the most extensive range of instrument probes that DeFelsko offers - many versions available for many different applications. Further details as follows:
- Familiar. These interchangeable probes are compatible with the tried-and true DeFelsko Standard and Advanced Gauge Bodies. In addition, all current versions can also be paired with the PosiTector SmartLink / mobile app platform. (Compatibility chart available under the document tab to confirm compatibility on older gages.)
- Versatile. Checks coating thickness in many applications, including:
- Single-handed use (integral probes)
- Cabled probes in various lengths
- Hot / Rugged applications
- Very thin to very thick coatings
- and more!
This page shows probes only. Package options including PosiTector 6000 Standard Gages and PosiTector 6000 Advanced Bodies are shown on their separate pages.
Probes - not the Gage / Bodies - are factory calibrated and each new probe comes with a Certificate of Calibration. For field calibration checks, certified or non-certified standards are available separately (see You May Also Like below.) Contact us for information on probe repairs or probe re-certifications.
*The DeFelsko PosiTector 200 is available for measuring coating thickness on non-metallic substrates.
-
The PosiTest® PC - DeFelsko's solution for non-destructive prediction of final thickness on powder coated finishes. This latest model offers both an improved design and lower pricing than before. Features include:
- Simple Design. Dedicated stand-alone unit is very easy to learn and use.
- Durable. Solvent, acid, oil, water, and dust resistant - a great combination when used in harsh powder environments.
- Powerful. Stores up to 999 readings with on-screen averaging. Readings can be downloaded to PosiSoft desktop software using the included USB cable.
- Accurate. New sensor design improves measurement on odd geometries, moving parts, and small tubes. Complies with ASTM D7378.
- Flexible. Available in the following configurations:
- PosiTest PC dedicated kit. Includes PC device, zero probe fixture, protective lens, carry case, and more.
- Powder Inspection Kit with PosiTector 6000. Includes PC dedicated kit, powder combs, choice of Standard or Advanced PosiTector 6000 body, and choice of FS Ferrous or FNS Combination Ferrous / Non-Ferrous cabled coating thickness probe.
- Powder Inspection Kit with PosiTest DFT. Includes PC dedicated kit, powder combs, and choice of Ferrous or Combination Ferrous / Non-Ferrous dedicated DFT gage.
-
INDBHIGLASS
The glass zero plate for the PosiTector BHI Barcol Hardness Impressor is used when replacing the indentor, adjusting for wear, etc.
A glass plate is included in the BHI kit, and is available separately here as a replacement item.
MPN: BHIGLASS
INDBHIGLASSThe glass zero plate for the PosiTector BHI Barcol Hardness Impressor is used when replacing the indentor, adjusting for wear, etc.
A glass plate is included in the BHI kit, and is available separately here as a replacement item.
MPN: BHIGLASS
Part Number Purchase Price INDBHIGLASS $24.57 Web price iPlease sign in to your account to see your pricing, which may be different from the price displayed.$24.57
-
-

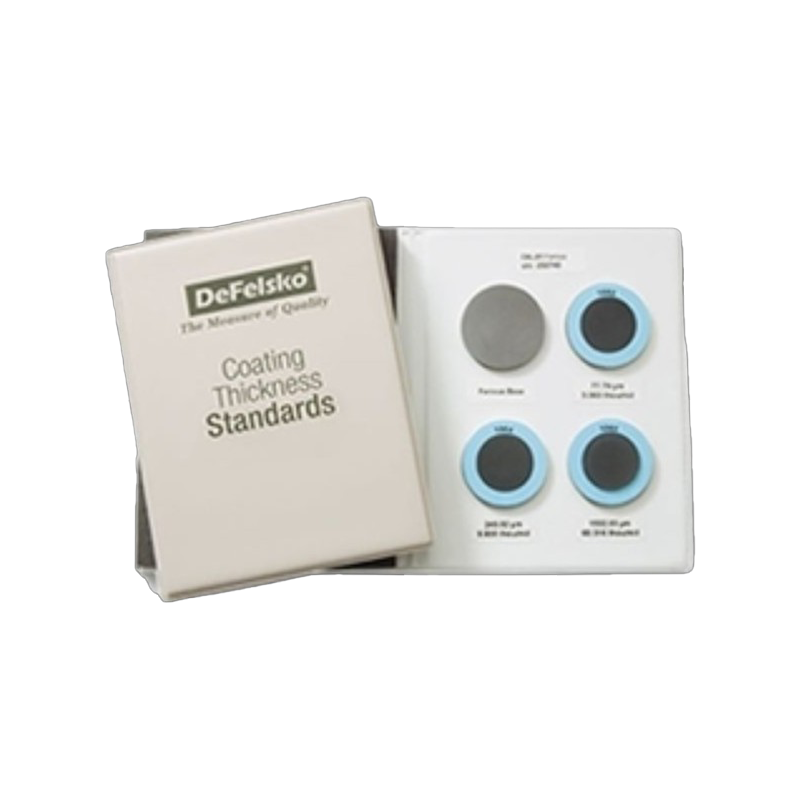

Thickness standards are used to verify the accuracy and operation of coating thickness gauges. As a component of ISO 9000 or in-house quality control procedures, they are a practical alternative to sending instruments to DeFelsko for calibration.
DeFelsko offers various solutions for this process and this group of products is their premium version comprised of 4 Certified Coated Metal Plates (one being a zero plate).
Select the Standard set that most closely matches the measuring range of your probe. See selection chart under the Description tab.
-
INDPOUCHDFTBlastOne carries all DeFelsko instruments, accessories, and supplies. This leather pouch has been specially designed for the PosiTest DFT gauge and economically provides protection for your investment. MPN: POUCH-DFTINDPOUCHDFTBlastOne carries all DeFelsko instruments, accessories, and supplies. This leather pouch has been specially designed for the PosiTest DFT gauge and economically provides protection for your investment. MPN: POUCH-DFT
Part Number Purchase Price INDPOUCHDFT $36.86 Web price iPlease sign in to your account to see your pricing, which may be different from the price displayed.$36.86
-
-
Thickness Standards are used to verify the accuracy and operation of coating thickness gauges. As a component of ISO 9000 or in-house quality control procedures, they are a practical alternative to sending instruments to DeFelsko for calibration. These Plastic Shims (aka foils) are low-cost alternative to coated metal plates. They are available in Certified (individual shims or full sets) and in Un-Certified sets. Accuracy is somewhat less than metal plates and they are more sensitive to heat. They are intended for use over a Zero Plate, or over an uncoated substrate. A set of un-certified plastic shims is included with most electronic DeFelsko coating thickness gauges. Replacement sets and certified options are available here as follows:
- Un-Certified. These are checked for accuracy within tolerance shown below at DeFelsko, but are not traceable to any standard. They come as a set of 5 only, in the following approximate thicknesses:
- 25 microns / 1 mil (Orange), +- 20% accuracy
- 50 microns / 2 mils (Red), +- 10% accuracy
- 125 microns / 5 mils (Blue), +- 5% accuracy
- 250 microns / 10 mils (Brown), +- 5% accuracy
- 500 microns / 20 mils (Yellow), +- 5% accuracy
- Certified. Includes certificate of calibration traceable to PTB and all are accurate to within 2 microns / 0.08 mils. Available in the following thicknesses individually, or as a complete set of 8 shims:
- 25 microns / 1 mil (Orange)
- 50 microns / 2 mils (Red)
- 75 microns / 3 mils (Green)
- 125 microns / 5 mils (Blue)
- 250 microns / 10 mils (Brown)
- 500 microns / 20 mils (Yellow)
- 1000 microns / 40 mils (White)
- 1500 microns / 60 mils (Black)
- Un-Certified. These are checked for accuracy within tolerance shown below at DeFelsko, but are not traceable to any standard. They come as a set of 5 only, in the following approximate thicknesses:
-
Part Number Purchase Price INDPOSIPEN $488.36 Web price iPlease sign in to your account to see your pricing, which may be different from the price displayed.$488.36
-
-
The DeFelsko® PosiTector® 200 Ultrasonic Coating Thickness Gauge (SKU: P-IND200) provides precision measurements on non-metallic substrates. This versatile tool features:
- Interchangeable probes (PRB200B, PRB200C, PRB200D) for varied coating thicknesses
- 2.8" impact-resistant color touchscreen with intuitive navigation
- IP65-rated enclosure for water, dust, and weather resistance
- Multiple connectivity options: USB, WiFi, Bluetooth
- Advanced models with storage up to 250,000 readings and detailed analysis
-
The PosiTector® 6000 probe & advanced gage / body kit family - DeFelsko's premium solution for non-destructive coating thickness measurement on metallic* substrates. The PosiTector 6000 series is the most extensive range of instrument probes that DeFelsko offers - many versions available for many different applications. Further details as follows:
- Familiar. The PosiTector Gauge / Body is the tried-and-true platform offering interchangeability with most DeFelsko probes.
- Versatile. Checks coating thickness in many applications, including:
- Single-handed use (integral probes)
- Cabled probes in various lengths
- Hot / Rugged applications
- Very thin to very thick coatings
- and more!
This page shows Kit / Packages for the Standard Body with your choice of PosiTector 6000 probe. Compare the features of the PosiTector Standard and Advanced Body, and Probe-only, Body-only and Advanced Body / Probe kits.
Probes - not the Gage / Bodies - are factory calibrated and each new probe comes with a Certificate of Calibration. For field calibration checks, certified or non-certified standards are available separately (see You May Also Like below.) Contact us for information on probe repairs or probe re-certifications.
*The DeFelsko PosiTector 200 is available for measuring coating thickness on non-metallic substrates.
-
The PosiTector® 6000 probe & standard gage / body kit family - DeFelsko's basic solution for non-destructive coating thickness measurement on metallic* substrates. The PosiTector 6000 series is the most extensive range of instrument probes that DeFelsko offers - many versions available for many different applications. Further details as follows:
- Familiar. The PosiTector Gauge / Body is the tried-and-true platform offering interchangeability with most DeFelsko probes.
- Versatile. Checks coating thickness in many applications, including:
- Single-handed use (integral probes)
- Cabled probes in various lengths
- Hot / Rugged applications
- Very thin to very thick coatings
- and more!
This page shows Kit / Packages for the Standard Body with your choice of PosiTector 6000 probe. Compare the features of the PosiTector Standard and Advanced Body, and Probe-only, Body-only and Advanced Body / Probe kits.
Probes - not the Gage / Bodies - are factory calibrated and each new probe comes with a Certificate of Calibration. For field calibration checks, certified or non-certified standards are available separately (see You May Also Like below.) Contact us for information on probe repairs or probe re-certifications.
*The DeFelsko PosiTector 200 is available for measuring coating thickness on non-metallic substrates.
-
The PosiTector BHI - DeFelsko's solution for measuring hardness on hard plastics and soft metals, such as aluminum, copper, brass, and more.
- Familiar. The BHI probe is interchangeable and compatible with the tried-and-true PosiTector instrument platform. It is available as a package with either the Standard or the Advanced Gage/Body, or as a probe-only.
- Specialized. Compares to the 934-1 Barcol Hardness Tester.
- Capable. Numerous advantages over conventional analog instruments (as well as competitive digital instruments) including:
- Memory. Enhances convenience and reliability of reporting by saving readings for archiving or reporting.
- Reporting options. The PosiTector BHI includes the PosiSoft suite of software for viewing and reporting.
- Test Time. To improve accuracy when testing some materials that continue to deform during the test, the PosiTector Barcol Hardness Impressor offers on-board elapsed time setting capability.
Note: The PosiTector BHI is factory calibrated. A glass zero-plate is included in the BHI package for use when replacing the indentor, compensating for wear, etc. A full listing of items included in the probe kit is shown on the brochure under the documents tab.
-
The innovative and capable PosiTector Gage / Body is the backbone of a large and growing family of DeFelsko inspection equipment. When paired with 1 of the over 10 interchangeable probes, it can measure and store data for common environmental, surface, coating and more conditions. DeFelsko offers two versions of gauges (Standard and Advanced) which can be purchased individually, or in a variety of DeFelsko Body / Probe packages including 1 or more probes, depending on the application. To compare features on the two gage versions, see our PosiTector 6000 Standard and Advanced Body comparison chart. This page shows the Gage Body options only. BlastOne carries all other DeFelsko items including individual PosiTector 6000 probes, PosiTector Standard Body/Probe Kits, PosiTector Advanced Body/Probe Kits, and DeFelsko Coating Inspector Packages. NOTE: This new Gen 5 PosiTector body platform is backwards-compatible with all Positector probes manufactured since 2012.
BlastOne Supplies Dry Film Thickness Gauges (DFT), Wet Film Thickness Gauges (WFT), Paint Gauges & other Coating Thickness Gauges (CTG) compliant to Australian Standards AS 3894.3—2002 “Site testing of protective coatings. Method 3: Determination of dry film thickness”
BlastOne is the leading supplier of coating thickness gauges & instruments in Australia.
Paint Thickness Gauges & Coating Gauges for galvanizing, plating, anodizing, industrial & protective coatings
The Blast-One™ range of Coating Inspection Instruments & Kits facilitate for every type of Coating Inspector – Protective Coating, Industrial, Marine, etc. Three ‘off the shelf’ kits are available – will suit a diverse range of inspection applications, including coating thickness measurement, wet film thickness, dry film thickness, dew point measurement, relative humidity measurement, surface profile gauge (SPG) etc.
Custom designed kits are also available – please discuss your requirements and application with your Blast-One™ dealer. BlastOne Supplies Dry Film Thickness Gauges (DFT), Wet Film Thickness Gauges (WFT), Paint Gauges & other Coating Thickness Gauges. BlastOne is the leading supplier of coating & paint thickness gauges & instruments.
